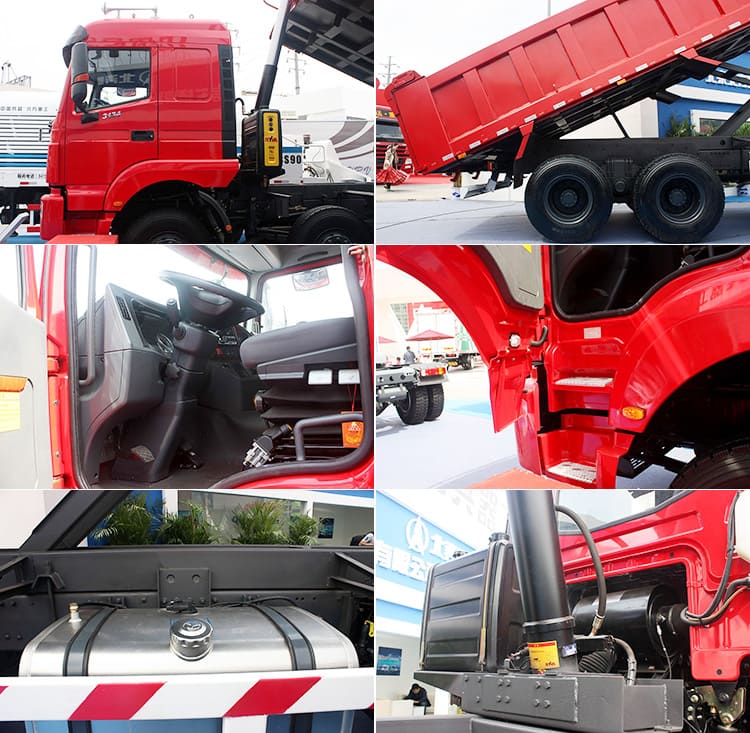

The beiben north benz v3 3134 8x4 dump truck V3 cab is characterised by beauty, comfort and spaciousness. beiben north benz v3 3134 8x4 dump truck is equipped with four-point full-floating suspension as standard: improve the vibration isolation rate and relieve driving fatigue.
Beiben north benz v3 3134 8x4 dump truck V3 cab: Beautiful, comfortable and spacious. The standard four-point full-floating suspension is used to improve the vibration isolation rate and relieve driving fatigue.
At the same time, the flashlight integrated pump of the beiben north benz v3 3134 8x4 dump truck is arranged for easy operation: the operating height is increased from 0.6 meters to 1.2 meters, and the operation convenience is qualitatively improved.
The structure of the hard lever control system is optimized for the beiben north benz v3 3134 8x4 dump truck: the matching is reasonable, the shifting is light, the gear does not drop, and the reliability is high.
Brand New Beiben North Benz V3 3134 8x4 Dump Trucks for Sale Near Me
Brand New Beiben North Benz V3 3134 8x4 Dump Trucks for Sale Near Me
Brand New Beiben North Benz V3 3134 8x4 Dump Trucks for Sale Near Me
Name: Beiben north benz v3 3134 8x4 dump truck
Drive form: 8X4
Wheelbase: 1950+3750+1350mm
Engine: Yuchai YC6MK340-42
Gearbox: ZF ZF16T1880
Rear axle ratio: 5.286
Overall Dimension(mm): 10150x2500x3470
front wheelbase:1940mm
rear track:1860mm
vehicle weight: 14.77 tons
Rated load: 16.1 tons
Total mass: 31 tons
Approach angle: 16 degrees
Departure angle: 24 degrees
Overall Ratio: 4.44
Engine
Engine model: Yuchai YC6MK340-42
Engine brand: Yuchai
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 10.338L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1500N m
Maximum torque speed: 1100-1500rpm
Rated speed: 2100rpm
Engine form: BOSCH high pressure common rail SCR
Cargo box
L*W*H(mm): 7200x2300x1180
Cargo box form: self-unloading
Transmission
Gearbox model: ZF ZF16T1880
Gearbox brand: ZF
Forward gear: 16 gears
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 300L
Chassis
Rear Axle Description: 457 Rear Axle
Speed ratio: 5.286
Number of leaf springs: 9/9/10
Tire
Tire specification: 11.00R20
Number of tires: 12
