The cargo compartment of the Beiben ng80 8x4 end dump truck is equipped with an electrically-controlled environmental protection canopy to ensure that the entire compartment is closed to avoid spillage, dripping, and dust flying all over the sky.
The cargo compartment of the Beiben ng80 8x4 end dump truck adopts U-shaped bucket, and the discharge is clean; the rear door is equipped with a rubber sealing strip. Prevent the spillage of loose objects such as mud and sand during vehicle transportation and reduce environmental pollution.
Beiben Truck Logo | Beiben NG80 8x4 End Dump Truck Price Near Me
Beiben Truck Logo | Beiben NG80 8x4 End Dump Truck Price Near Me
Beiben Truck Logo | Beiben NG80 8x4 End Dump Truck Price Near Me

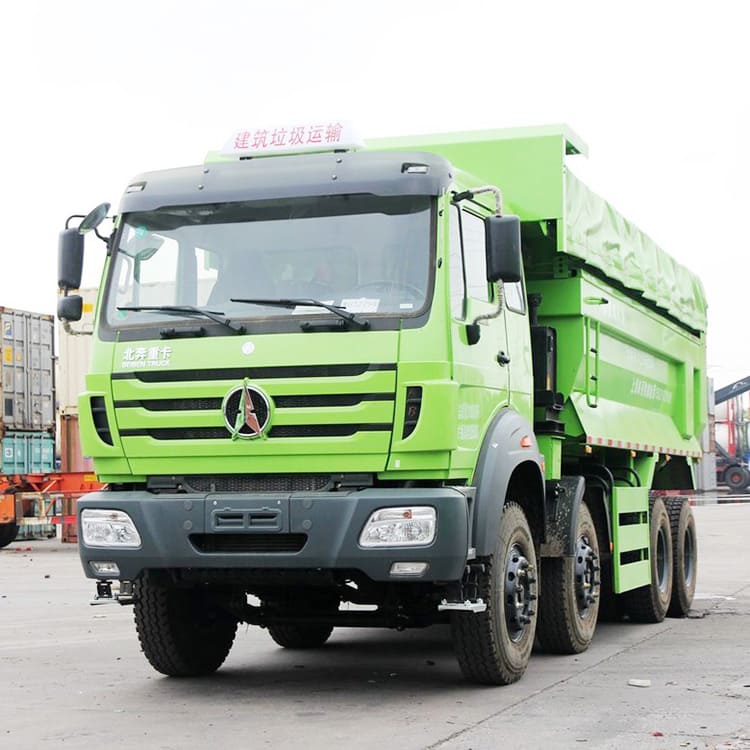

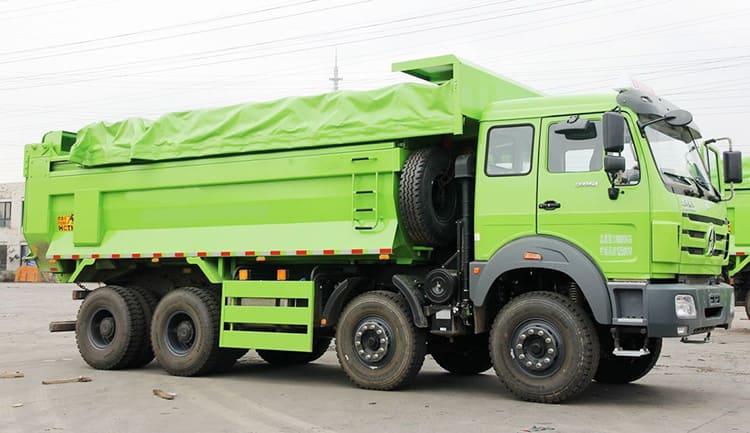

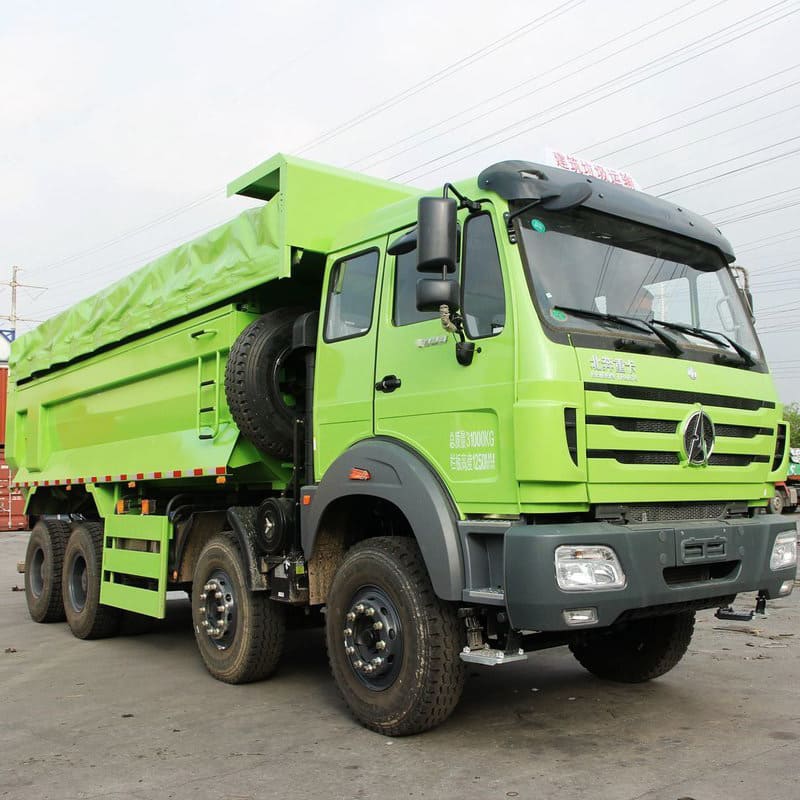

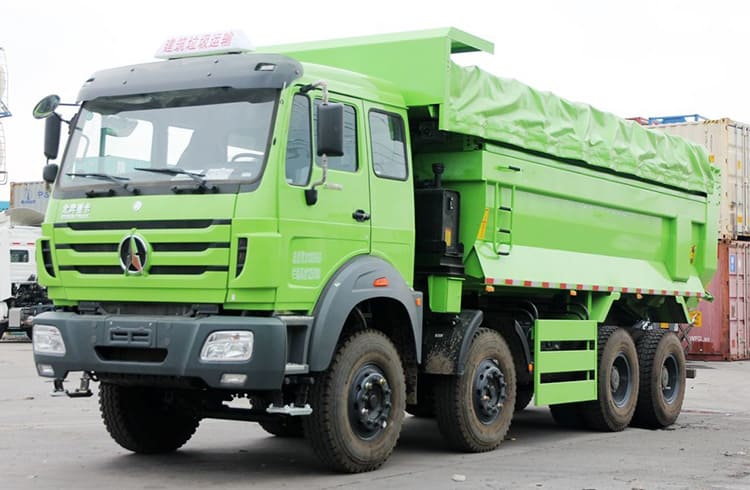

Name: Beiben NG80 8x4 End Dump Truck
Drive form: 8X4
Wheelbase: 1950+2800+1450mm
Overall Dimension(mm): 9280x2500x3480
Front track: 2045mm
Rear Track: 1872mm
Vehicle weight: 14.765 tons
Rated load: 16.105 tons
Total mass: 31 tons
Approach angle: 33 degrees
Departure angle: 25 degrees
Market segment: Urban construction waste
Engine
Engine model: Weichai WP10.336E40
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 9.726L
Maximum horsepower: 336 horsepower
Maximum output power: 247kW
Maximum torque: 1500N m
Maximum torque speed: 1300-1600rpm
Rated speed: 1900rpm
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Cargo box
L*W*H(mm): 6400x2300x1250
Cargo box form: rear flip self-unloading
Gearbox
Gearbox model: Fast 12JS200TA
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 300L
Chassis
Frame size:
Description of rear axle:
Rear axle allowable load: 18000kg
Speed ratio: 5.263
Number of leaf springs: 12/12/13
Tire
Tire specification: 12.00R20
Number of tires: 12
