The beiben 4040 8x4 tipper truck adopts Mercedes-Benz suspension technology, and the front suspension of the beiben 4040 8x4 tipper truck is equipped with a lateral stabilizer bar and hydraulic shock absorber, which has good passability and can easily cope with the severe challenges of complex road conditions.
Beiben 4040 8x4 tipper truck axle adopts Mercedes-Benz technology, advanced and precise Mercedes-Benz axles, stable quality, large transmission torque, strong bearing gravity, and German DIN standard, and runs smoothly. The front axle load is 7.5 tons, the rear axle load is 13 tons.
beiben 4040 8x4 tipper truck also adopt the Mercedes-Benz suspension technology, the front suspension of the beiben 4040 8x4 tipper truck is equipped with a lateral stabilizer bar and a hydraulic shock absorber, and the rear suspension of the beiben 4040 8x4 tipper truck adopts the unique Mercedes-Benz balance suspension of Beiben, which has good passability and can cope with the severe challenges of complex road conditions calmly.

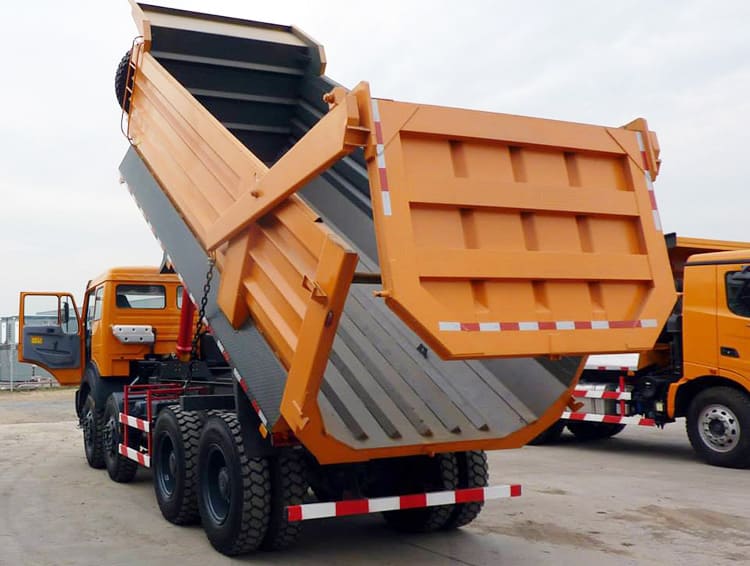

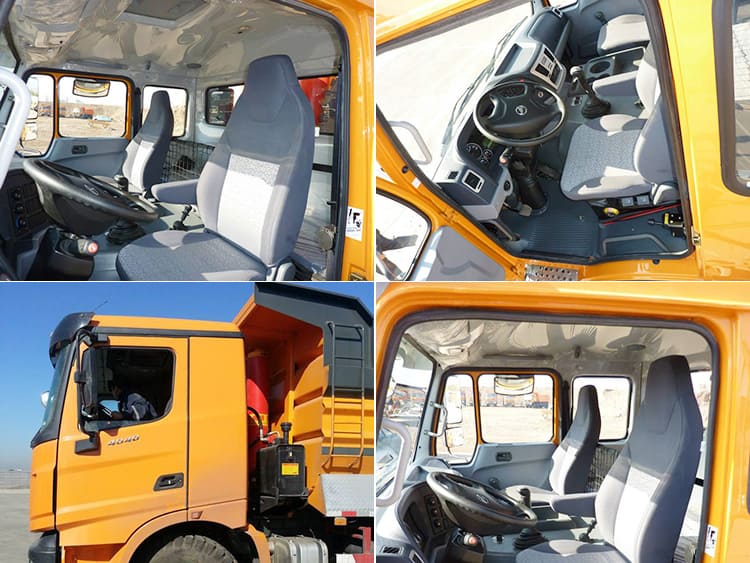

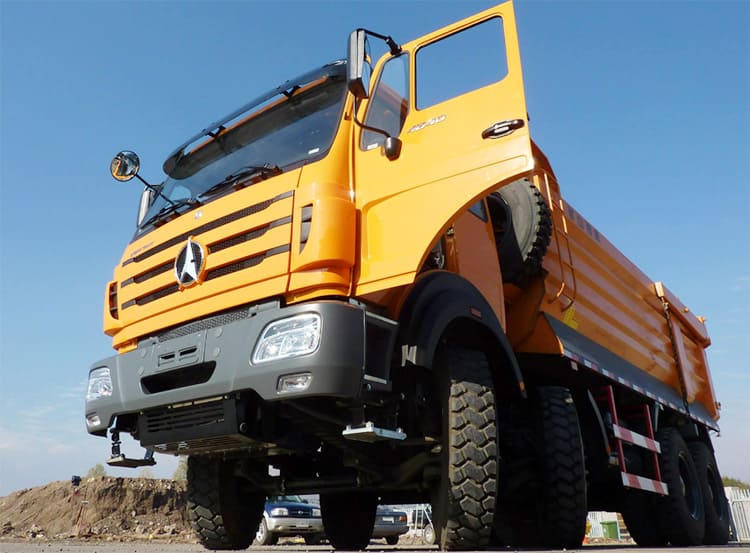

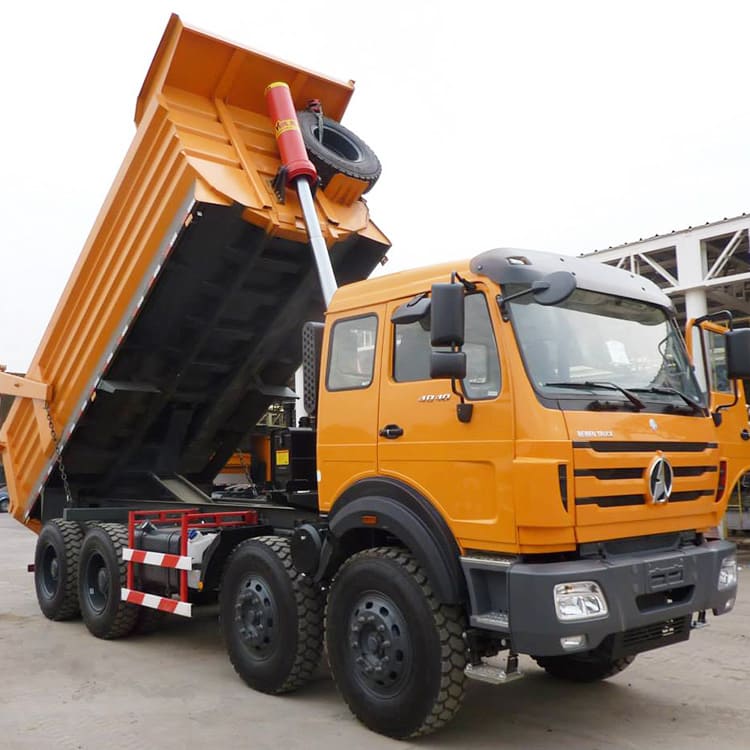

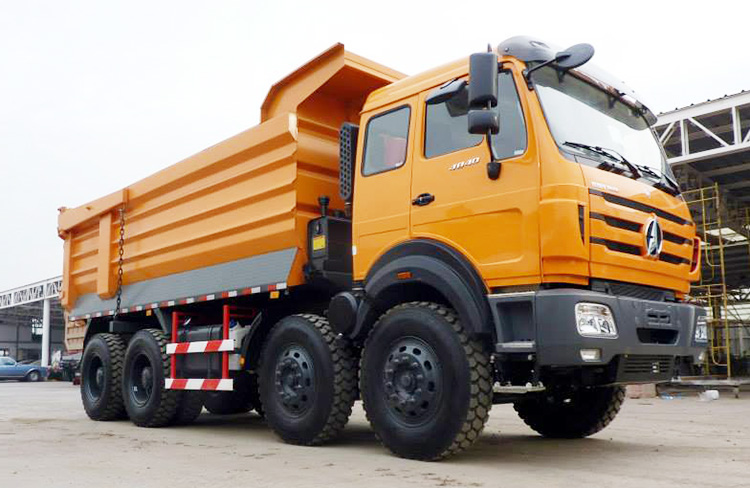

Beiben 4040 8x4 Tipper Trucks for Sale in Tanzania
Beiben 4040 8x4 Tipper Trucks for Sale in Tanzania
Beiben 4040 8x4 Tipper Trucks for Sale in Tanzania
Beiben 4040 8x4 Tipper Trucks for Sale in Tanzania
Name: Beiben 4040 8x4 Tipper Truck
Drive form: 8X4
Wheelbase: 1950+3400+1450mm
Overall Dimension (mm): 10205x2550x3484
Front track: 2042/2042mm
Rear Track: 1878/1878mm
Vehicle weight: 14.77 tons
Rated load: 16.1 tons
Total mass: 31 tons
Approach angle: 17 degrees
Departure angle: 25 degrees
Engine:
Engine model: Weichai WP10.350E53
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 9.726L
Maximum output power: 257kW
Maximum torque: 1600N m
Maximum torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine form: Electronically controlled high pressure common rail + SCR
Cargo box
L*W*H (mm): 7200x2350x1180
Cargo box form: self-unloading
Transmission
Gearbox model: Fast 12JS160T
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: Chassis parameters
Frame size:
Rear axle description: 457 single reduction axle
Rear axle allowable load: 18000 (two axles) kg
Speed ratio: 4.769
Number of leaf springs: 12/12/13
Tire
Tire specification: 11.00R20 18PR
Number of tires: 12
