The beiben ng80 2534 6x4 dump truck fuel tank volume is also controlled. The overall fuel tank capacity is 400L. Although the capacity is small, thanks to the excellent fuel economy of the Weichai engine, the car's battery life is also very good.
The whole beiben ng80 2534 6x4 dump truck adopts a lot of lightweight design, from the rim to the cab, everything is in compliance and safe weight reduction. The whole beiben ng80 2534 6x4 dump truckof this vehicle uses aluminum alloy rims, which is 50% lighter than ordinary models.
Beiben Dump Truck | Brand New Beiben NG80 2534 6X4 Dump Truck Cost for Sale
Beiben Dump Truck | Brand New Beiben NG80 2534 6X4 Dump Truck Cost for Sale
Beiben Dump Truck | Brand New Beiben NG80 2534 6X4 Dump Truck Cost for Sale

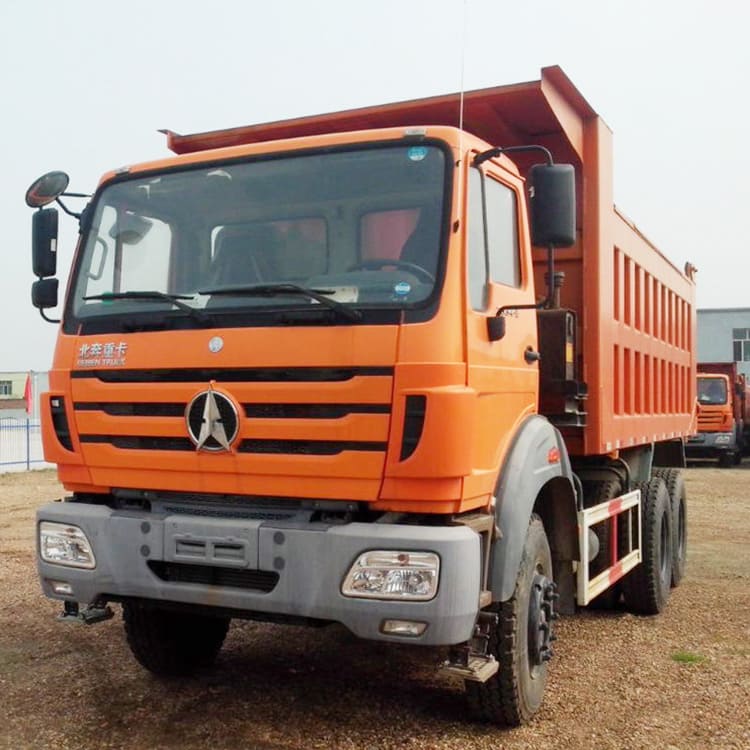

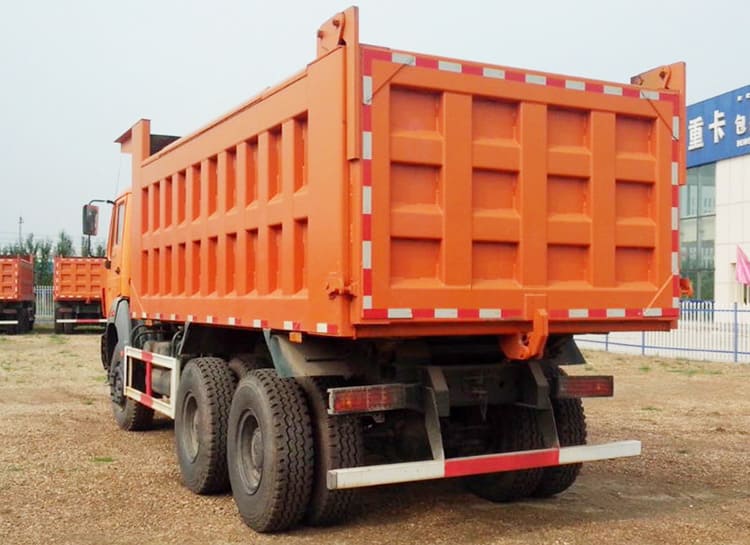

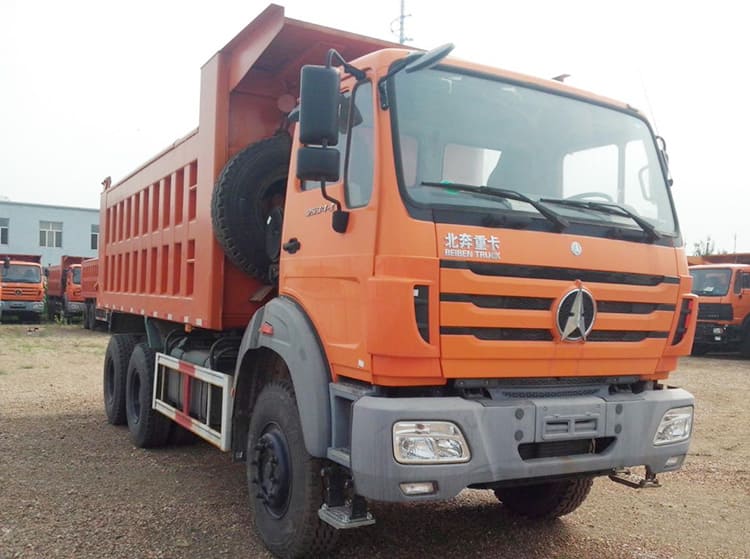

Name: Brand New Beiben NG80 2534 6X4 Dump Truck
Drive form: 6X4
Wheelbase: 3800+1450mm
Overall Dimension(mm): 8530x2500x3300
Front Track: 1995mm
Rear track: 1800/1800mm
Vehicle weight: 12.2 tons
Rated load: 12.7 tons
Total mass: 25 tons
Tonnage class: heavy truck
Approach angle: 26 degrees
Departure angle: 32 degrees
Engine
Engine model: Weichai WP10.340E32
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 9.726L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1250N m
Maximum torque speed: 1400-1600rpm
Rated speed: 2200rpm
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Cargo box
L*W*H(mm): 5800x2300x1100
Cargo box form: self-unloading
Gearbox
Gearbox model: Fast 10JSD180
Forward gear: 10th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 400L
Chassis
Rear axle allowable load: 18000kg
Number of spring pieces: 10/13
Tire
Tire size: 12.00-20
Number of tires: 10
