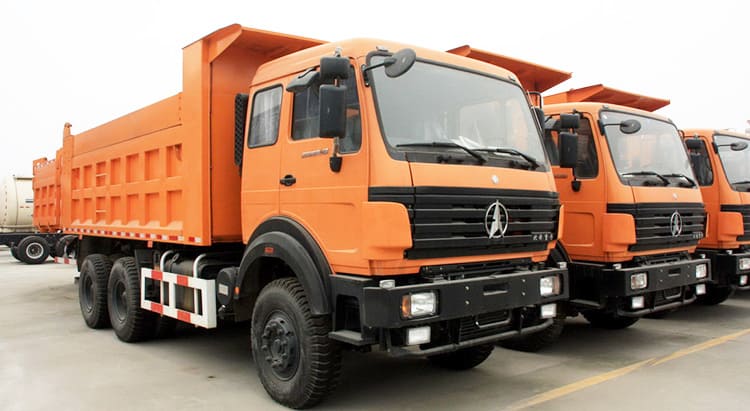

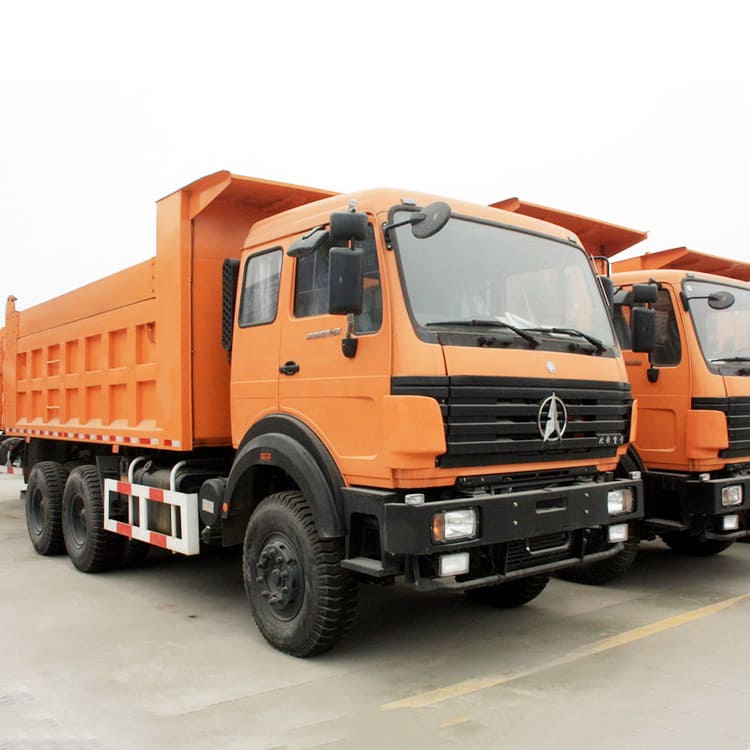

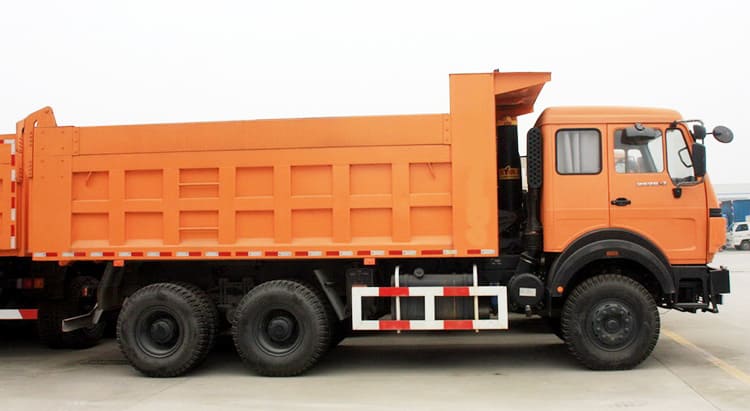

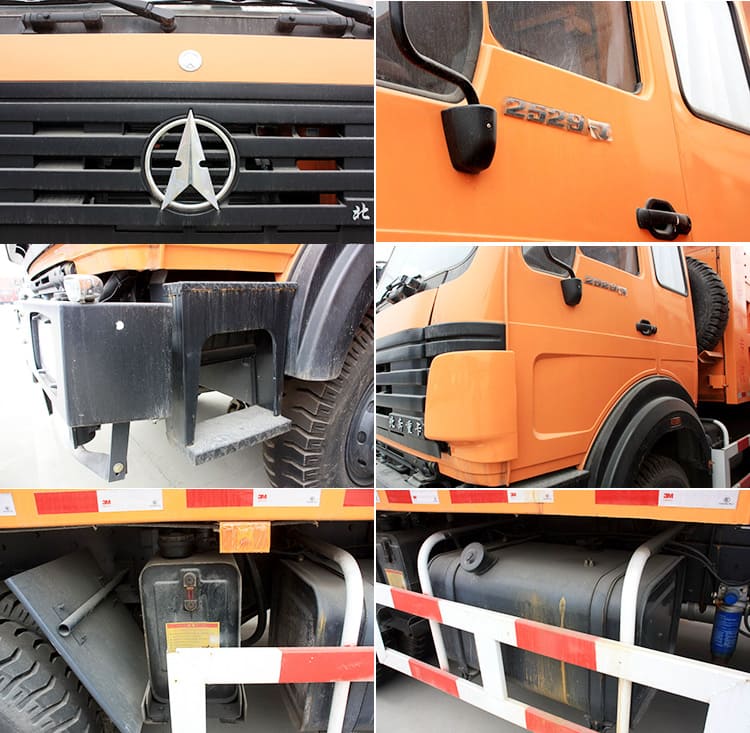

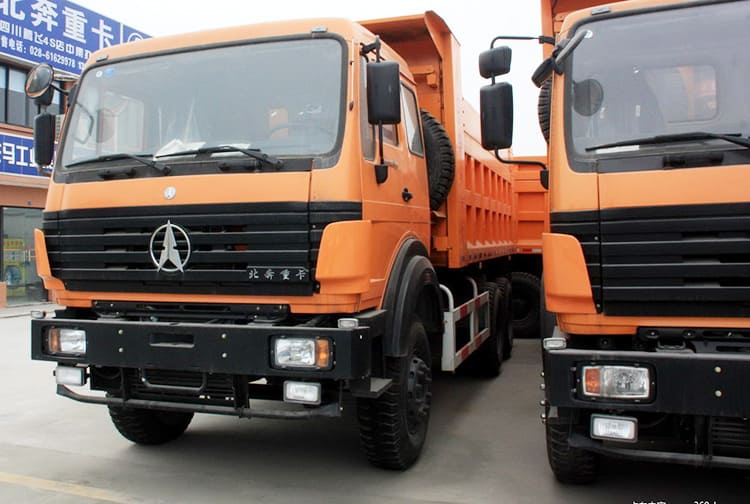

Beiben NG80 2529I 10 Wheel Tipper Truck

Beiben NG80 2529I 10 Wheel Tipper Truck

Beiben ng80 2529i 10 wheel tipper truck highlights seven highlights of efficiency, safety, technology, environmental protection, beauty, comfort and humanization

SKU: Beiben NG80 2529I 10 Wheel Tipper Truck
MPN: BEIBEN9401005
Brand: BEIBEN

Beiben NG80 2529I 10 Wheel Tipper Truck

Efficiency is an indispensable condition for Beiben ng80 2529i 10 wheel tipper truck to perform its best functions. Beiben ng80 2529i 10 wheel tipper truck reduces the drag coefficient to 0.569 with a streamlined design. Large air intake flow, ultra-small air intake resistance, lightweight design, and smaller layout space give the cargo box more room to play, enabling the cargo box to carry more cargo.

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale

Beiben Tipper Truck | Beiben NG80 2529I 10 Wheel Tipper Truck for Sale



Beiben Tipper Truck Specification

Name: Beiben NG80 2529I 10 Wheel Tipper Truck

Drive form: 6X4

Wheelbase: 3800+1450mm

Overall Dimension(mm): 8450x2500x3310

Front Track: 1995mm

Rear track: 1808/1808mm

Vehicle weight: 12.4 tons

Rated load: 12.47 tons

Total mass: 25 tons

Approach angle: 26 degrees

Departure angle: 32 degrees

Engine

Engine model: Weichai WP10.290

Number of cylinders: 6

Fuel Type: Diesel

Displacement: 9.726L

Maximum horsepower: 290 horsepower

Maximum output power: 213kW

Maximum torque: 1160N m

Maximum torque speed: 1200-1600rpm

Rated speed: 2200rpm

Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled

Cargo box

L*W*H(mm): 5600x2300x1150

Cargo box form: rear flip self-unloading

Gearbox

Gearbox model: Fast 9JS135

Forward gear: 9th gear

Number of reverse gears: 1

Fuel tank

Fuel tank capacity: 400L

Chassis

Rear axle allowable load: 18000kg

Speed ​​ratio: 5.9

Number of spring pieces: 10/13

Tire

Tire size: 12.00-20

Number of tires: 10

Remark:

Air conditioners, sun visors, front fence panels, environmental protection roofs, and five-door cargo compartments can be optional. The quality of the environmental protection roofs is 220kg. When the overall dimension (mm) is 8450×2500×3310, the rear overhang (mm) is 1790, and the inner dimension (mm) of the cargo box panel is 5600×2300×1150; when the overall dimension (mm) is 8350×2500×3310 , The rear overhang (mm) is 1690, and the inner size of the cargo box panel (mm) is 5400 × 2300 × 1200; the rear unloading method is adopted.
