Bieben truck 6x4 2534 dump truck optimize the performance of the whole vehicle, re-adjust the matching parameters of the engine, transmission and axle, improve the operating efficiency of the vehicle, improve the dynamic performance of the vehicle, and reduce the fuel consumption.
Bieben truck 6x4 2534 dump truck domestic leading Fast transmission has a double intermediate shaft structure, large torque transmission, strong climbing ability, economical and fuel-efficient. Bieben truck unique shifting mechanism allows users to choose the best speed ratio according to different working conditions. Transmission with pneumatic power assist, easy to operate, clear gears, good feel, and various types of power take-offs.
At the same time, the performance of the whole Bieben truck 6x4 2534 dump truck is optimized, and the matching parameters of the engine, transmission and axle are readjusted to improve the operating efficiency of the vehicle, improve the dynamic performance of the Bieben 6x4 2534 dump truck and reduce the fuel consumption.
Bieben Truck | Beiben 6x4 2534 Dump Truck for Sale Near Me Manufacturer
Bieben Truck | Beiben 6x4 2534 Dump Truck for Sale Near Me Manufacturer
Bieben Truck | Beiben 6x4 2534 Dump Truck for Sale Near Me Manufacturer

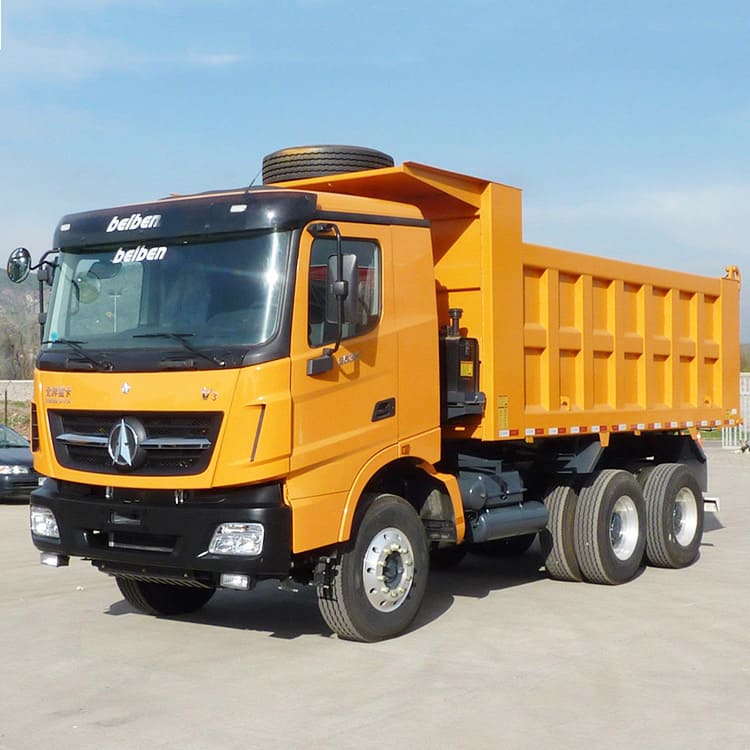

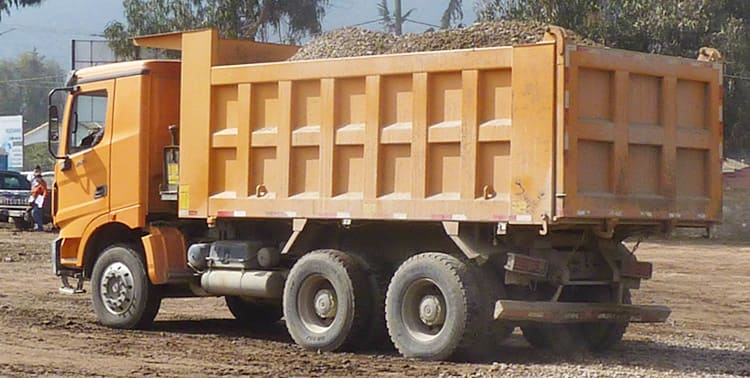

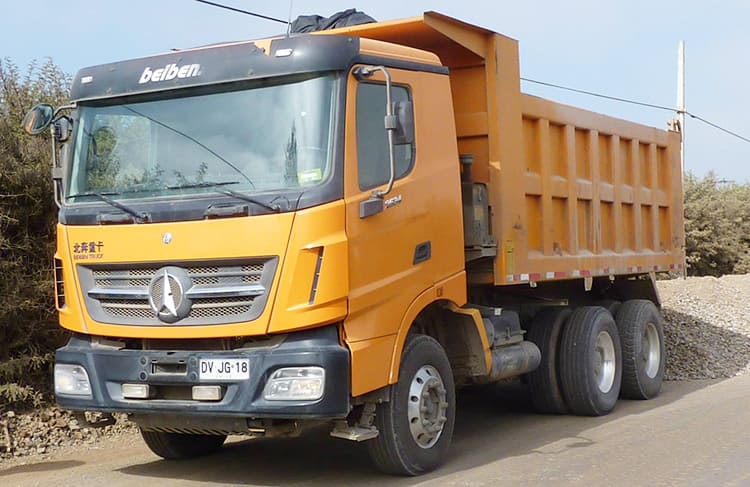

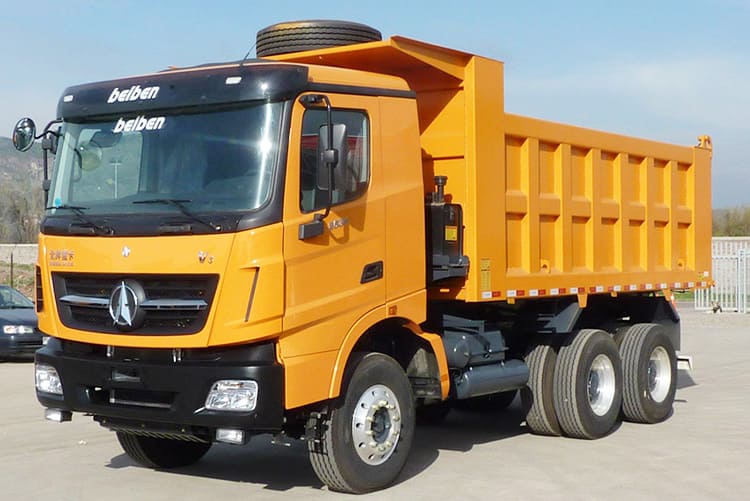

Name: Bieben Truck 6x4 2534 Dump Truck
Drive form: 6X4
Wheelbase: 4100+1450mm
Overall Dimension(mm): 8825x2550x3430
Front track: 2004mm
Rear Track: 1878/1878mm
Vehicle weight: 12.26 tons
Rated load: 12.61 tons
Total mass: 25 tons
Tonnage class: heavy truck
Approach angle: 17 degrees
Departure angle: 25 degrees
Engine
Engine model: Weichai WP10.350E53
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 9.726L
Emission standard: National V
Maximum horsepower: 350 horsepower
Maximum output power: 257kW
Maximum torque: 1600N m
Maximum torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine form: Electronically controlled high pressure common rail + SCR
Cargo box
Overall Dimension(mm): 5800x2350x1500
Cargo box form: self-unloading
Transmission
Gearbox model: Fast 10JSD160
Forward gear: 10th gear
Number of reverse gears: 2
Fuel tank
Fuel tank capacity: 300L
Chassis
Frame size:
Rear axle description: Beiben 13 ton double reduction axle
Rear axle allowable load: 18000 (two axles) kg
Speed ratio: 5.263
Number of spring pieces: 10/13
Tire
Tire specification: 11.00R20 18PR, 12.00R20 16PR
Number of tires: 10
