Beiben ng80 3134 12 wheel dumper truck uses good casting technology: it makes the truck less prone to defects, has stable performance, and ensures carrying capacity.
At the same time, beiben ng80 3134 12 wheel dumper truck has good passability and large clearance from the ground, ensuring normal driving safety on bad roads, wide field of vision, good braking effect, and safer driving.
Beiben Truck 2020 | Beiben NG80 3134 8x4 12 Wheel Dumper Truck Price
Beiben Truck 2020 | Beiben NG80 3134 8x4 12 Wheel Dumper Truck Price
Beiben Truck 2020 | Beiben NG80 3134 8x4 12 Wheel Dumper Truck Price

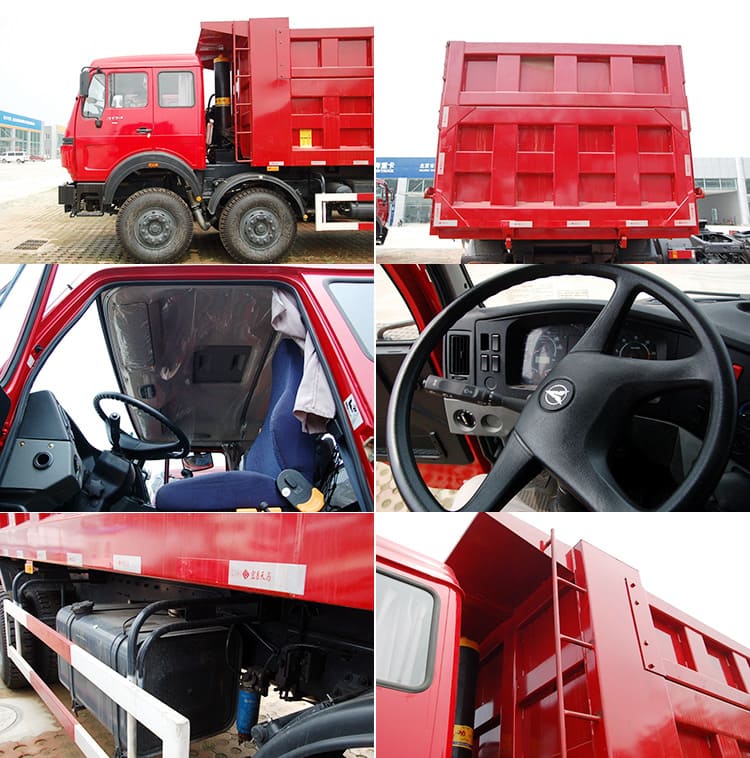

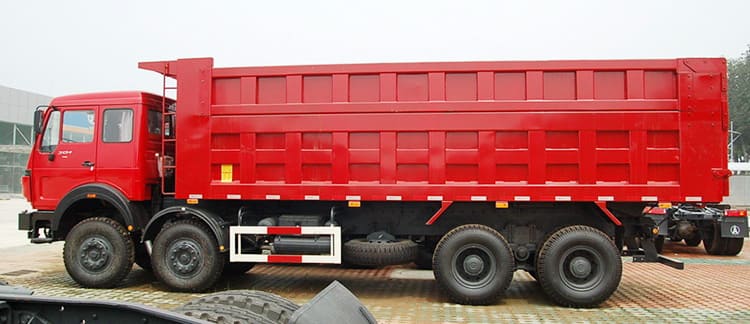

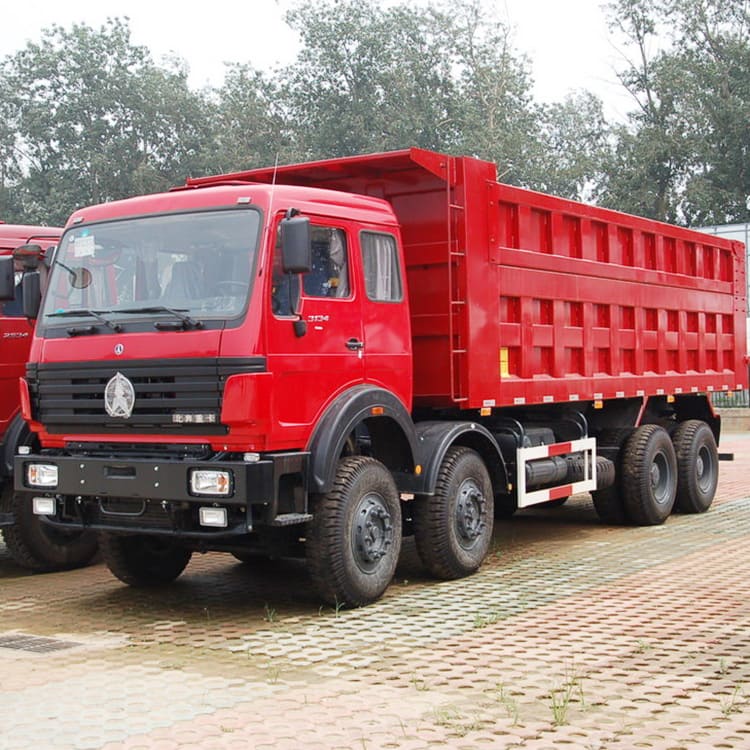

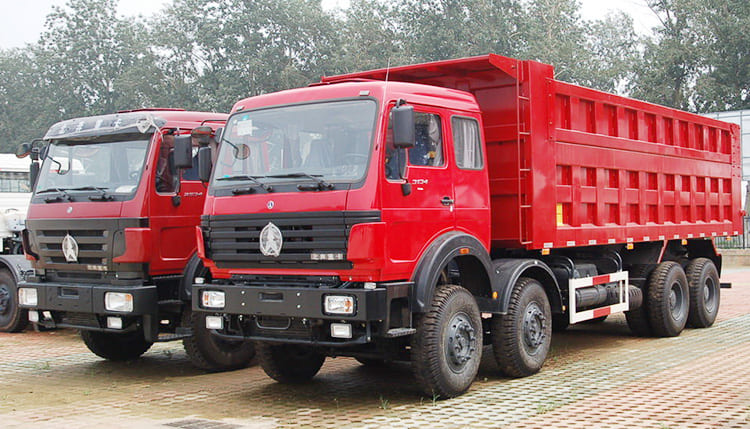

Name: Beiben NG80 3134 12 Wheel Dumper Truck
Drive form: 8X4
Wheelbase: 1500+4750+1450mm
Overall dimension(mm): 1200x2500x3500
Front Track: 1995/1995mm
Rear track: 1800mm
Vehicle weight: 14 tons
Rated load: 16.8 tons
Total mass: 31 tons
Approach angle: 26 degrees
Departure angle: 19 degrees
Market segments:
Urban construction waste, road transport
Engine
Engine model: Huachai TCD2015V06
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 11.906L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1558N m
Maximum torque speed: 1300rpm
Rated speed: 2100rpm
Engine form: V-type 6-cylinder, water-cooled, supercharged and intercooled
Cargo box
L*W*H(mm): 9420x2300x950
Cargo box form: self-unloading
Transmission
Gearbox model: Beiben 9T-160
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank capacity: 200L
Chassis
Rear axle allowable load: 18000kg
Speed ratio:
Number of leaf springs: 12/12/13
Tire
Tire size: 12.00-20
Number of tires: 12
