Beiben ng80 6x4 10 wheel tipper price uses Mercedes-Benz suspension technology, the front suspension is equipped with a lateral stabilizer bar and hydraulic shock absorber, and the rear suspension of the beiben ng80 6x4 10 wheel tipper price adopts Beiben's unique Mercedes-Benz balance suspension, which can calmly cope with the severe challenges of complex road conditions.
Beiben ng80 6x4 10 wheel tipper price use of the unique "Beiben" heavy-duty vehicle brand, gives full play to the technical advantages of German Mercedes-Benz heavy-duty vehicles, beiben ng80 6x4 10 wheel tipper price relies on first-class manufacturing equipment and technological processes, deepens cooperation with powerful parts suppliers such as Weichai and Fast, and optimizes itself. The beiben ng80 6x4 10 wheel tipper price has important assembly resources such as engine, transmission, axle, cab, frame, etc., and its comprehensive strength is strong.

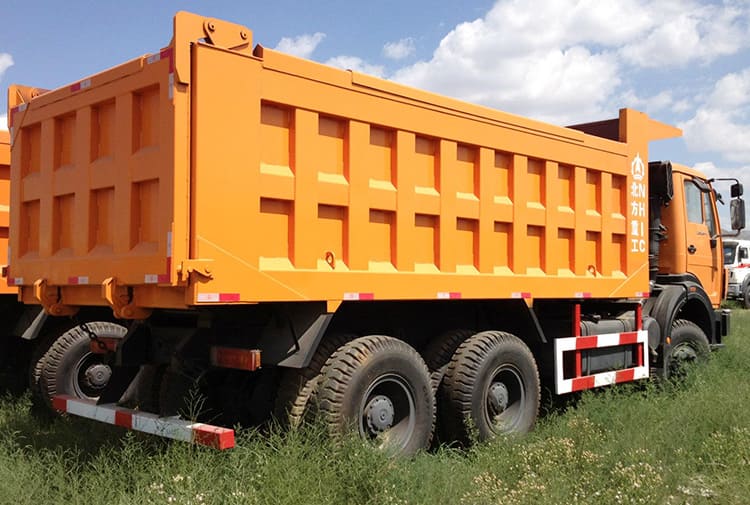

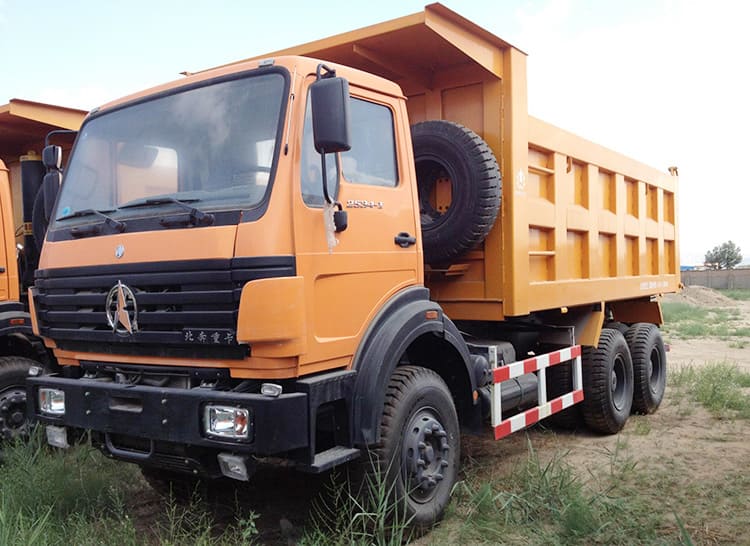

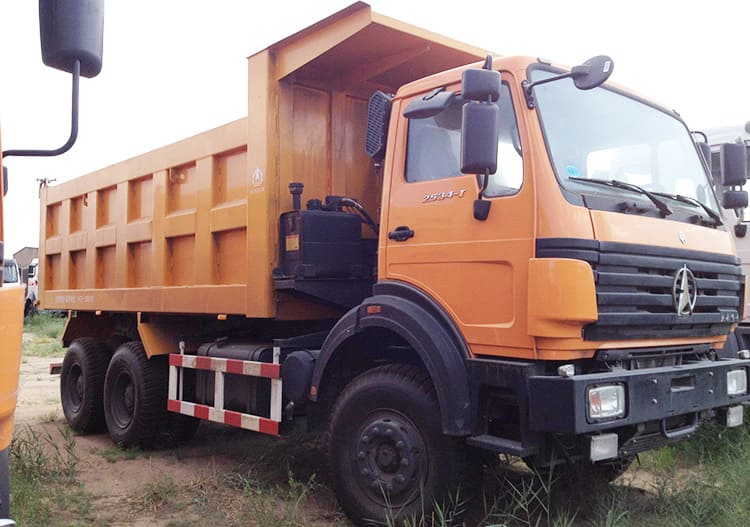

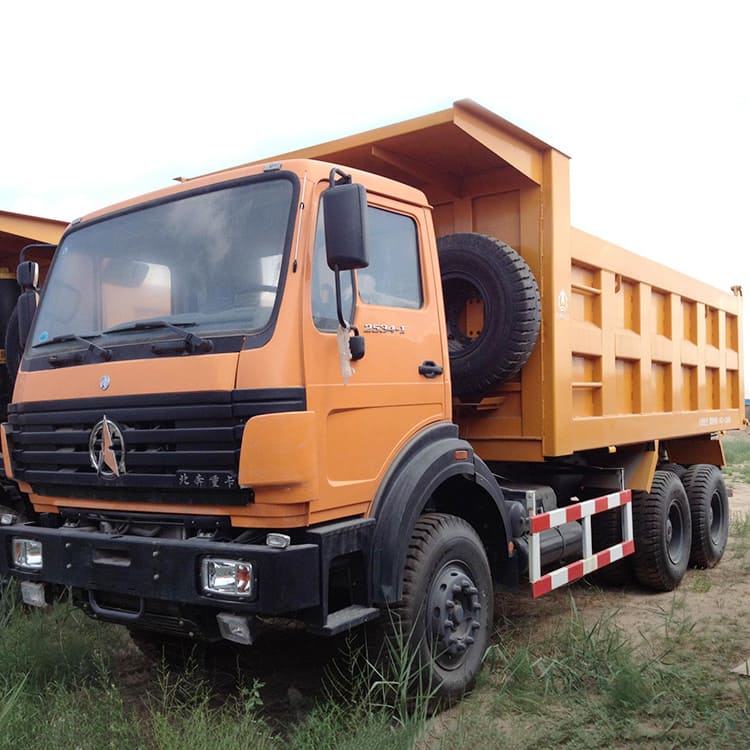

Beiben NG80 6x4 10 Wheel Tipper Price for Sale in Philippines
Beiben NG80 6x4 10 Wheel Tipper Price for Sale in Philippines
Beiben NG80 6x4 10 Wheel Tipper Price for Sale in Philippines
Name: Beiben NG80 6x4 10 Wheel Tipper Price
Drive form: 6X4
Wheelbase: 3800+1450mm
Overall Dimension(mm): 8450x2500x3310
Front Track: 1995mm
Rear track: 1808/1808mm
Vehicle weight: 12.4 tons
Rated load: 12.47 tons
Total mass: 25 tons
Approach angle: 26 degrees
Departure angle: 32 degrees
Engine
Engine model: Weichai WP10.290
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 9.726L
Maximum horsepower: 290 horsepower
Maximum output power: 213kW
Maximum torque: 1160N m
Maximum torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Cargo box
L*W*H(mm): 5600x2300x1150
Cargo box form: rear flip self-unloading
Gearbox
Gearbox model: Fast 9JS135
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank capacity: 400L
Chassis
Rear axle allowable load: 18000kg
Speed ratio: 5.9
Number of spring pieces: 10/13
Tire
Tire size: 12.00-20
Number of tires: 10
Remark:
Air conditioners, sun visors, front fence panels, environmental protection roofs, and five-door cargo compartments can be optional. The quality of the environmental protection roofs is 220kg. When the overall dimension (mm) is 8450×2500×3310, the rear overhang (mm) is 1790, and the inner dimension (mm) of the cargo box panel is 5600×2300×1150; when the overall dimension (mm) is 8350×2500×3310 , The rear overhang (mm) is 1690, and the inner size of the cargo box panel (mm) is 5400 × 2300 × 1200; the rear unloading method is adopted.
