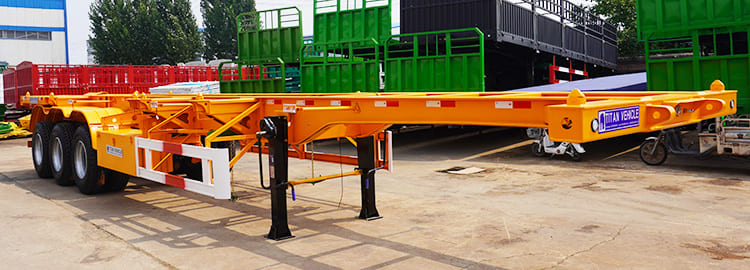

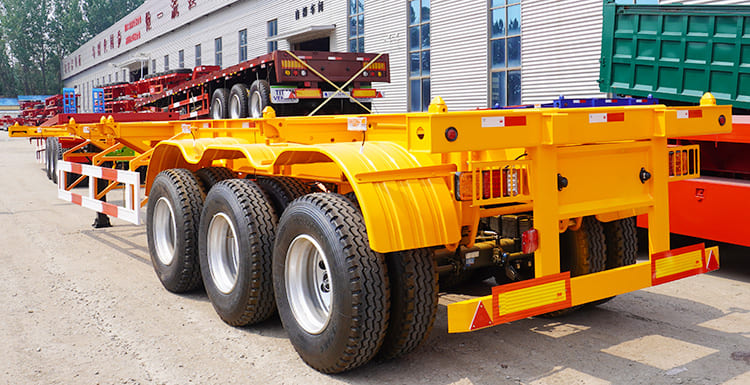

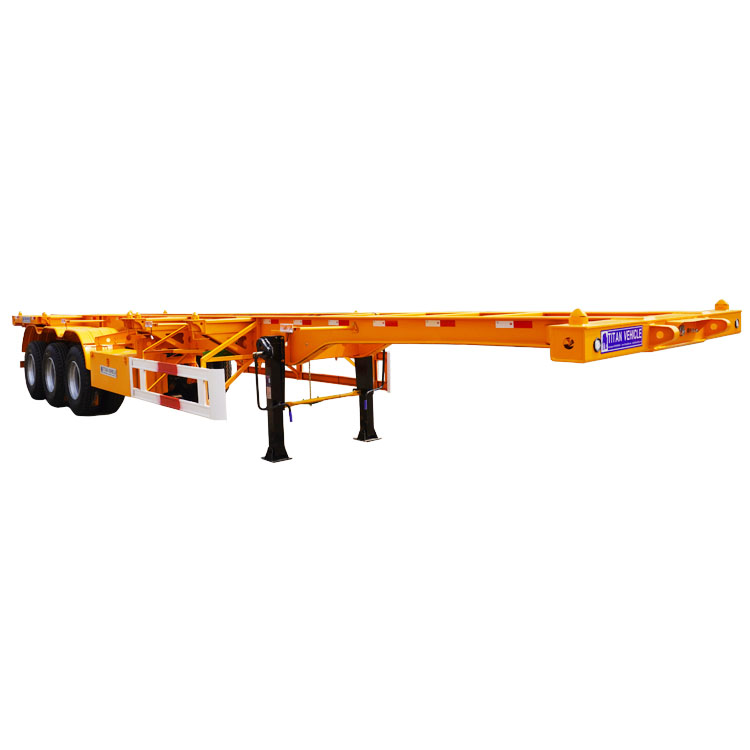

TITAN tri axle 40ft skeleton semi trailer commonly used for the transportation of various containers, this model could transport two 20ft containers or one 40ft container. And TITAN tri axle 40ft skeleton semi trailer mainly used in the logistics system of ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.
The tri axle 40ft skeleton semi trailer is mainly used to transport 40ft or 20ft containers, which has advantages of high efficient.
Tri Axle 40Ft Skeleton Trailer | Skeleton Semi Trailer for Sale in Somali
Tri Axle 40Ft Skeleton Trailer | Skeleton Semi Trailer for Sale in Somali
Tri Axle 40Ft Skeleton Trailer | Skeleton Semi Trailer for Sale in Somali
Tri Axle 40Ft Skeleton Trailer | Skeleton Semi Trailer for Sale in Somali

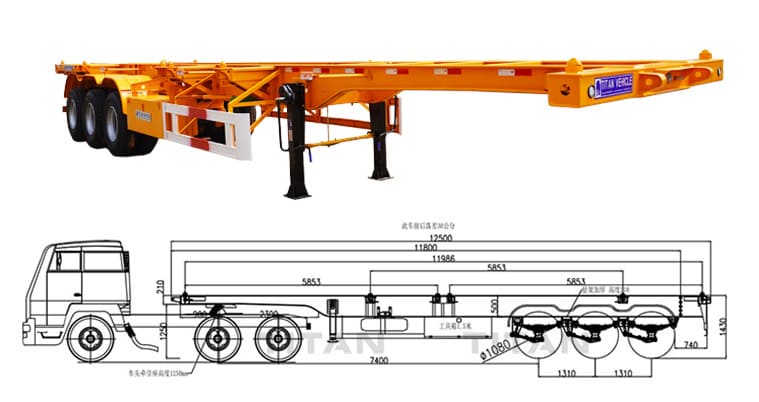

Dimension(mm): 12500x2500x1520mm
Loading capacity(ton): ≤60T
Axles: 3 axle
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

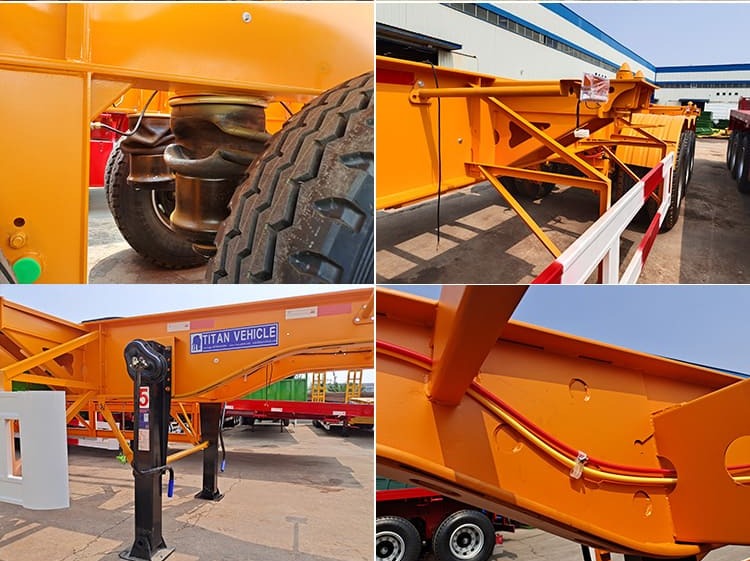

Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
