4 Axle 40ft flatbed container trailer with front board has a better bearing capacity because of the solid main beam, whixh is made of the Q345 steel material
The 4 Axle 40ft flatbed container trailer with front board is mainly composed of main frame, bottom plate, axle, tire, suspension, braking system, support device and side, rear and lower protection device, container lock, lighting circuit system, tool box, safety accessories and signs, etc.
The bottom plate of the 4 axle 40ft flatbed container trailer mainly uses a 3 mm thick diammond plate., which is thicker than the other factories.The 4 axle 40ft flatbed container trailer has a loading capacity no more than 60Tons

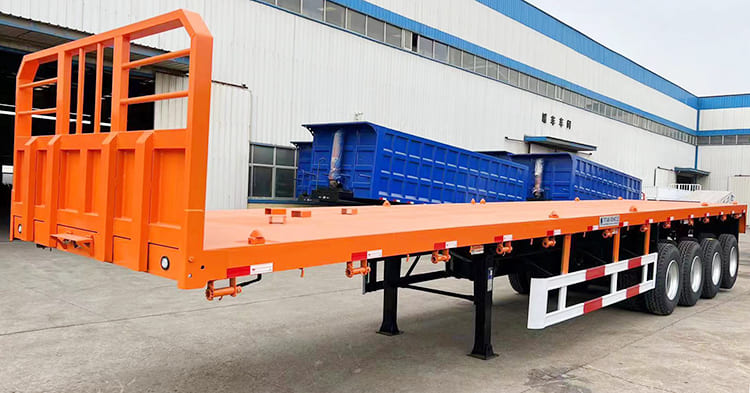

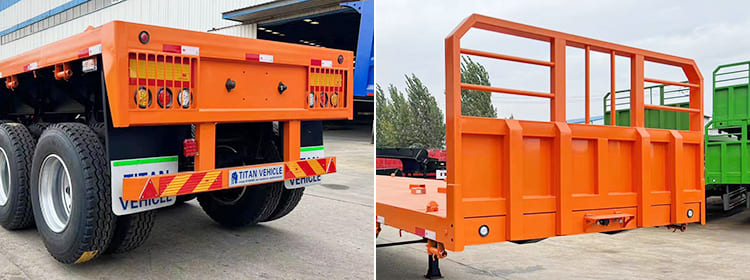

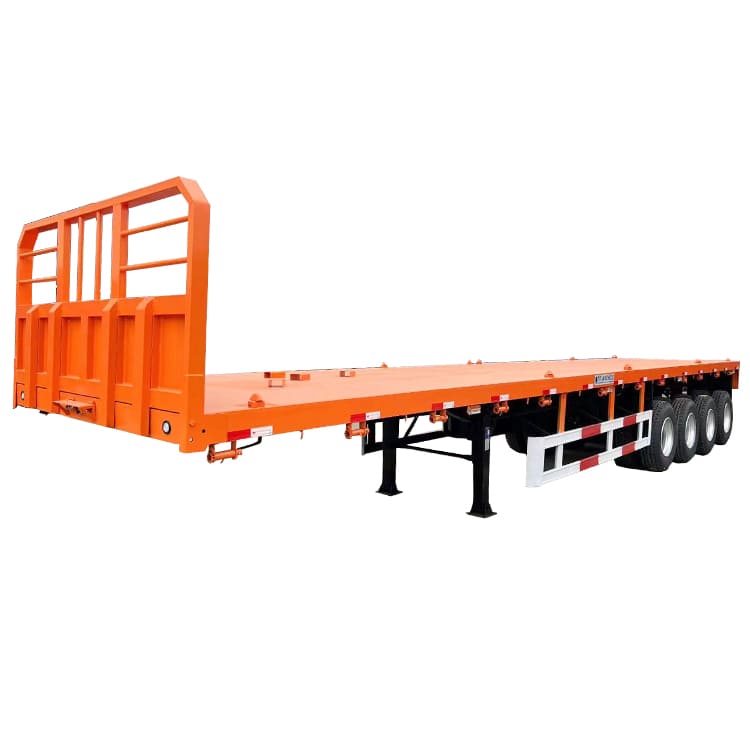

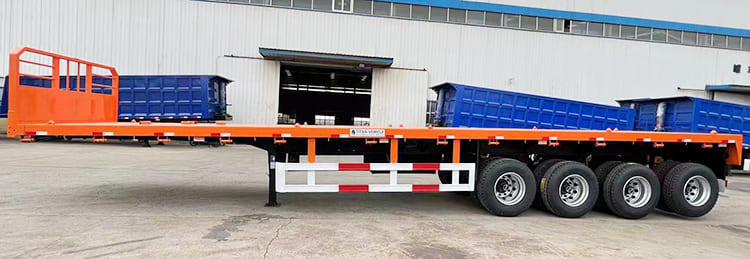

4 Axle 40Ft Flatbed Container Trailer with Front Board for Sale in Ghana
4 Axle 40Ft Flatbed Container Trailer with Front Board for Sale in Ghana
4 Axle 40Ft Flatbed Container Trailer with Front Board for Sale in Ghana
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Please Leave your message below and Get the Free Quotation!
