The three axle 40 foot flatbed semi trailer for sale is mainly designed for container transporting , the 40 foot container is the most common type of transporting
The transportation mode of the three axle 40 foot flatbed semi trailer is realized by the combination of the tractor and the semi-trailer. The three axle 40 foot flatbed semi trailer needs to be mechanically connected by the traction seat on the tractor and the traction pin on the semi-trailer. This drop-and-trail transportation method greatly improves the transportation efficiency and saves time and cost for the user.

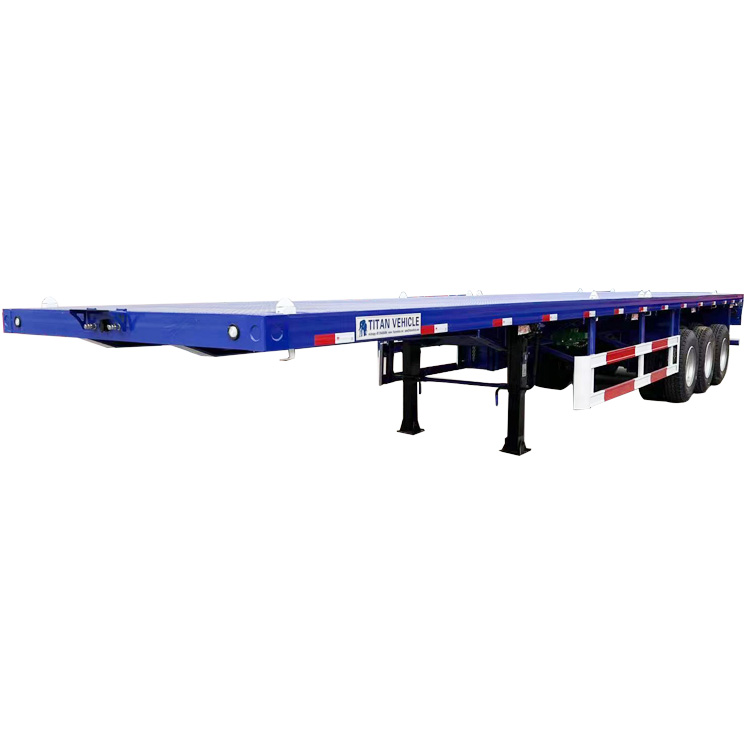

Three Axle 40 Foot Flatbed Semi Trailer for Sale in Nigeria

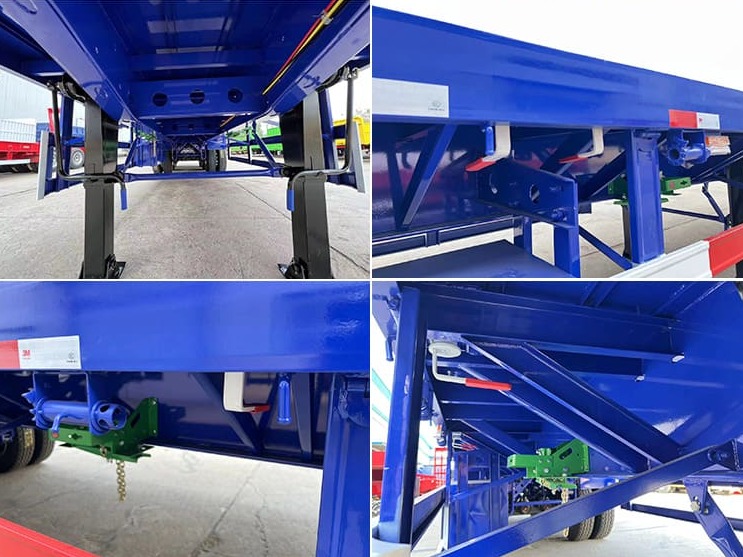

Three Axle 40 Foot Flatbed Semi Trailer for Sale in Nigeria

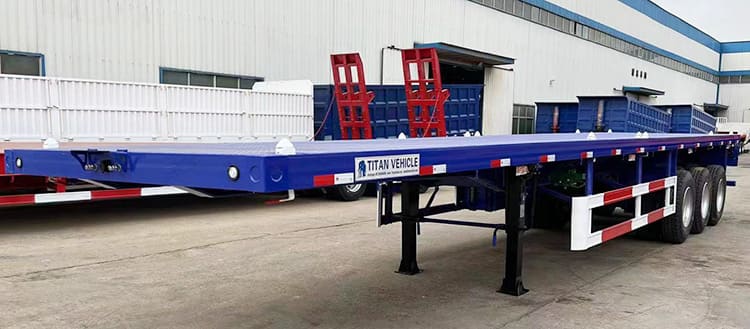

Three Axle 40 Foot Flatbed Semi Trailer for Sale in Nigeria
Tare Weight: About 7.1T

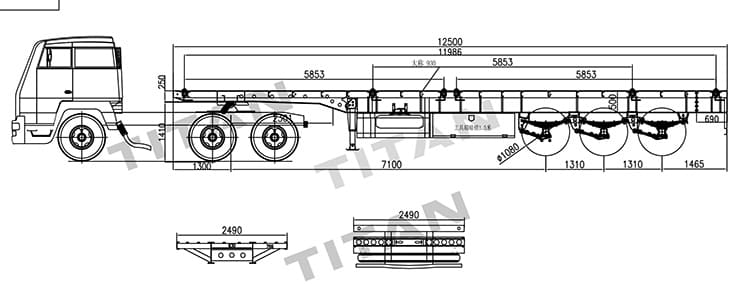

Dimension(mm): 12500x2490x1575mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

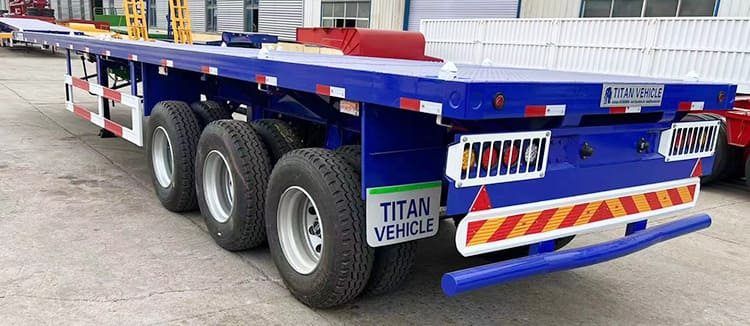

Three Axle 40 Foot Flatbed Semi Trailer for Sale in Nigeria
