The tri axle flatbed tractor trailer with air suspension is specially designed for bad road conditions, the air suspension has a good shock absorption
This tri axle flatbed tractor trailer with air suspension has a good shock absorption, because of the air suspension
The main purpose of the tri axle flatbed tractor trailer with air suspension is to transport standard international containers (the most common are 20 feet and 40 feet). Depending on the length of the container, flatbed tractor trailer for sale are available in several different lengths, such as 20 feet, 40 feet, 48 feet, and 53 feet. The tri axle flatbed tractor trailer with air suspensionhas high transportation efficiency, low fuel consumption per kilometer, and good economic benefits.
40 Feet 3/ Tri Axle Flatbed Tractor Trailer with Air Suspension for Sale in Kenya
40 Feet 3/ Tri Axle Flatbed Tractor Trailer with Air Suspension for Sale in Kenya
40 Feet 3/ Tri Axle Flatbed Tractor Trailer with Air Suspension for Sale in Kenya

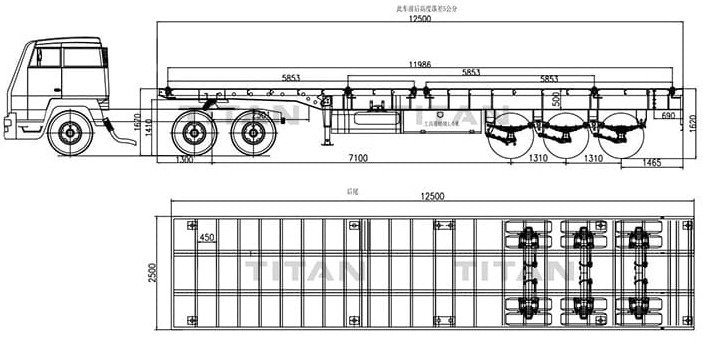

Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

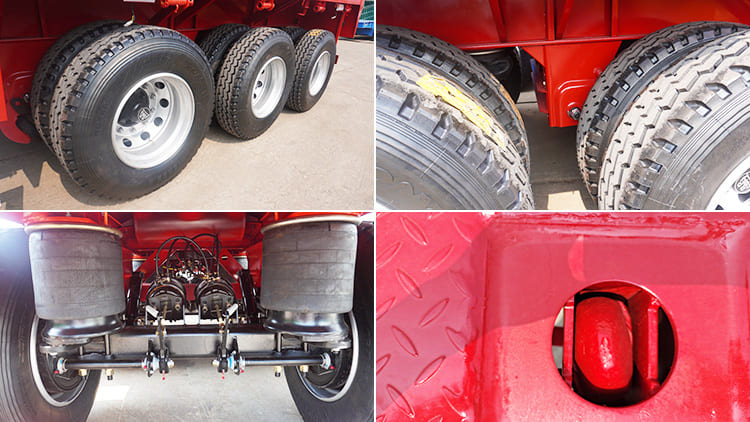

Suspension: Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
40 Feet 3/ Tri Axle Flatbed Tractor Trailer with Air Suspension for Sale in Kenya
