The 40Ft triple axle flatbed truck trailer is mainly used for tranporting containers international, like 40ft containers, or 20ft containers. The 40Ft triple axle flatbed truck trailer has 8 setd containers locks to help the container fixed on the triple axle flatbed truck trailer.
These advantages of 40ft triple axle flatbed truck trailer is widely used, and triple axle flatbed truck trailer have become one of the main means of transportation for road freight.
40Ft Triple Axle Flatbed Truck Trailer for Sale in Philippines
40Ft Triple Axle Flatbed Truck Trailer for Sale in Philippines
40Ft Triple Axle Flatbed Truck Trailer for Sale in Philippines

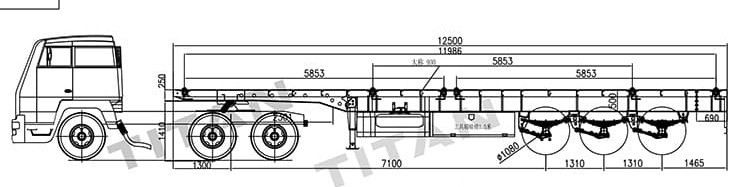

Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
40Ft Triple Axle Flatbed Truck Trailer for Sale in Philippines
