The frame of new beiben truck v3 1834 4x2 truck head price adopts a single-layer beam structure made of high-strength steel, which is light in weight and good in bearing capacity
New beiben truck v3 1834 4x2 truck head price adopts a lightweight design, with light weight and good bearing capacity, which can effectively meet the needs of efficient transportation vehicles to reduce the body weight. New beiben truck v3 1834 4x2 truck head price using new material lightweight wheel hub, integrated differential and reducer structure, lightweight disc brake, to achieve the lightest in the industry.
All of this is achieved through Beiben's original technology to reduce weight, which fully meets the lightweight needs of users.

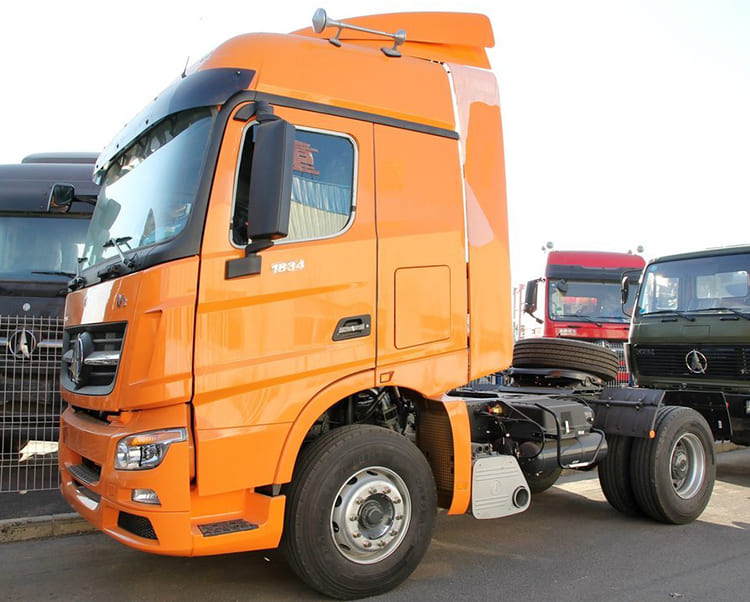

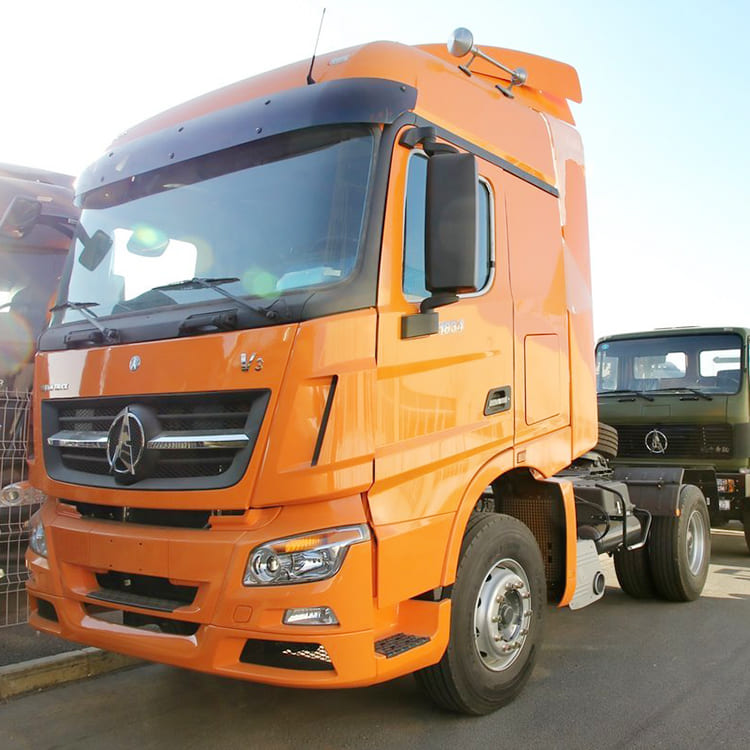

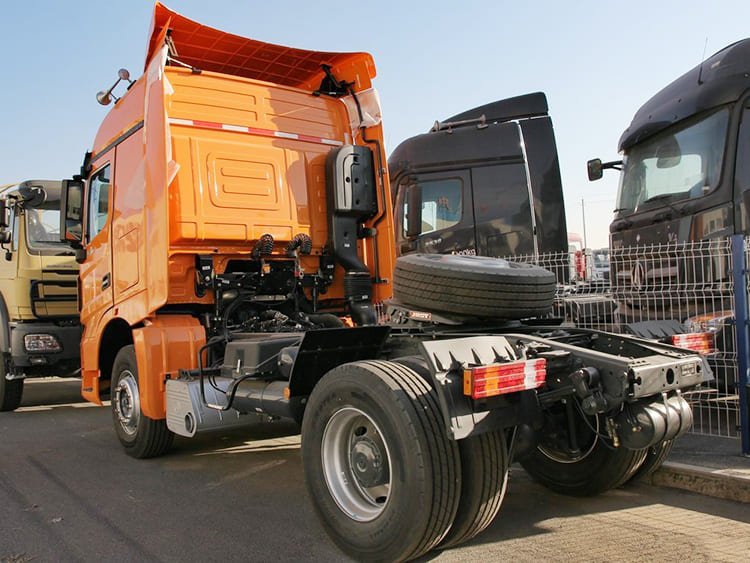

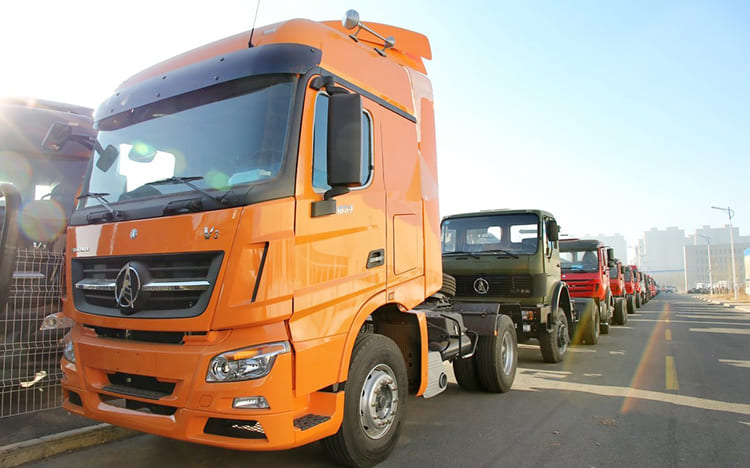

New Beiben Truck V3 1834 4x2 Truck Head Price for Sale
New Beiben Truck V3 1834 4x2 Truck Head Price for Sale
New Beiben Truck V3 1834 4x2 Truck Head Price for Sale
New Beiben Truck V3 1834 4x2 Truck Head Price for Sale
Name: New Beiben Truck V3 4x2 Truck Head Price
Drive form: 4X2
Wheelbase: 3500mm
Overall Dimension(mm): 5995x2490x3790
Front Track: 1995mm
Rear track: 1800mm
Vehicle weight: 7.02 tons
Total mass: 18 tons
Total Traction Mass: 34.85 tons
Maximum speed: 90km/h
Engine
Engine model: Weichai WP10.336
Engine brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum horsepower: 336 horsepower
Maximum output power: 247kW
Maximum torque: 1250N m
Maximum torque speed: 1200-1600rpm
Rated speed: 2200rpm
Cab
Cab: High Roof
Lower sleeper width: 750mm
Number of passengers allowed: 2
Seat row: half row
Gearbox
Gearbox model: Fast 12JS160TA
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel/Gas Tank Material: Aluminum Alloy
Fuel tank capacity: 400L
Chassis
Rear axle allowable load: 11300kg
Speed ratio: 4.7
Suspension form: leaf spring
Number of spring pieces: 13/9+8
Tire
Number of tires: 6
Tire Specifications: 12.00-20, 12.00R20, 11.00-20, 11.00R20
