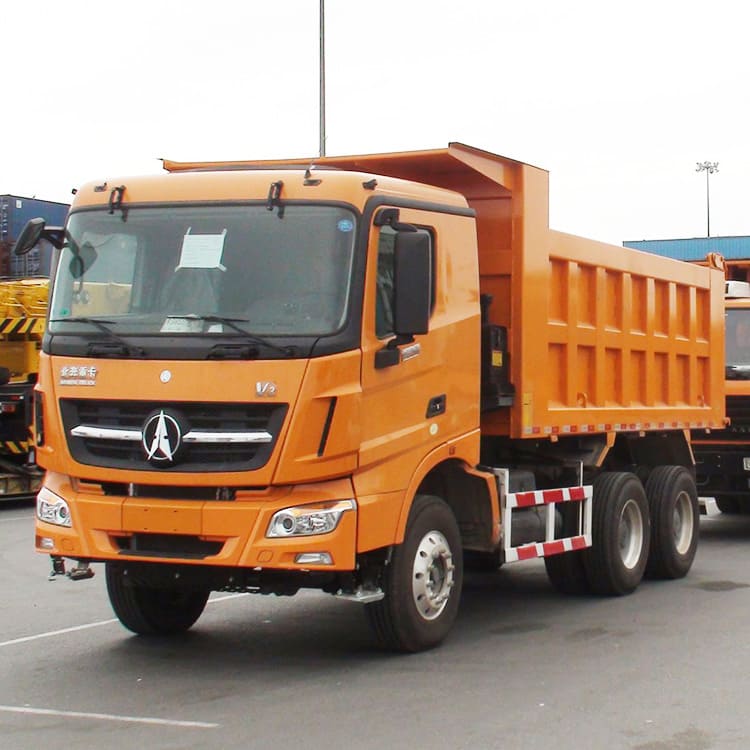

Beiben V3 6x4 Dumper Truck 10 Wheel Price

Beiben V3 6x4 Dumper Truck 10 Wheel Price

USD

Beiben v3 6x4 dumper truck 10 wheel price use German standard high-strength E500TM material as frame material, which is stamped and formed by a 10,000-ton press, with stronger bearing capacity and fully guaranteed manufacturing quality

SKU: Beiben V3 6x4 Dumper Truck 10 Wheel Price
MPN: BEIBEN9401018
Brand: BEIBEN

Beiben V3 6x4 Dumper Truck 10 Wheel Price

Beiben v3 6x4 dumper truck 10 wheel price systematic and integrated design technology of the frame suspension distributes the impact of the road surface reasonably through the middle part (deformation area) of the front-width and rear-narrow variable-section frame and the flexible suspension system to ensure that the wheels, suspension, The synchronous response of the frame of the beiben v3 6x4 dumper truck 10 wheel priceeffectively absorbs the alternating impact load, which not only greatly improves the grounding ability of the wheels of the beiben v3 6x4 dumper truck 10 wheel price, but also greatly improves the reliability and passability of the vehicle.

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya

Beiben V3 6x4 Dumper Truck 10 Wheel Price for Sale in Kenya



Dumper Truck 10 Wheel Price Specification:

Name:  Beiben V3 6x4 Dumper Truck 10 Wheel Price

Drive form: 6X4

Wheelbase: 4100+1450mm

Overall Dimension(mm): 8825x2550x3430

Front track: 2004mm

Rear Track: 1878/1878mm

Vehicle weight: 12.26 tons

Rated load: 12.61 tons

Total mass: 25 tons

Tonnage class: heavy truck

Approach angle: 17 degrees

Departure angle: 25 degrees

Engine

Engine model: Weichai WP10.350E53

Number of cylinders: 6

Fuel Type: Diesel

Displacement: 9.726L

Emission standard: National V

Maximum horsepower: 350 horsepower

Maximum output power: 257kW

Maximum torque: 1600N m

Maximum torque speed: 1200-1600rpm

Rated speed: 1900rpm

Engine form: Electronically controlled high pressure common rail + SCR

Cargo box

Overall Dimension(mm): 5800x2350x1500

Cargo box form: self-unloading

Transmission

Gearbox model: Fast 10JSD160

Forward gear: 10th gear

Number of reverse gears: 2

Fuel tank

Fuel tank capacity: 300L

Chassis

Frame size:

Rear axle description: Beiben 13 ton double reduction axle

Rear axle allowable load: 18000 (two axles) kg

Speed ​​ratio: 5.263

Number of spring pieces: 10/13

Tire

Tire specification: 11.00R20 18PR, 12.00R20 16PR

Number of tires: 10
