Beiben v3 2534 6x4 primemover is more powerful in power, equipped with Weichai WP13 series high-horsepower engine, Beiben v3 2534 6x4 primemover integrated transmission module design maximizes the performance of low-speed and high-torque engines, while giving full play to the minimum speed ratio Beiben bridge and AMT gearbox potential, achieve the best match of power and economy, and minimize the level of fuel consumption.
Beiben V3 2534 6x4 Primemover for Sale in Ghana
Beiben V3 2534 6x4 Primemover for Sale in Ghana
Beiben V3 2534 6x4 Primemover for Sale in Ghana
Beiben V3 2534 6x4 Primemover for Sale in Ghana

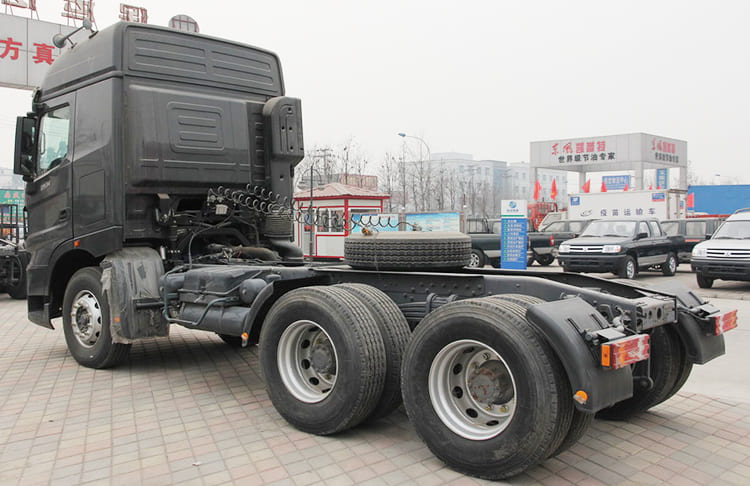

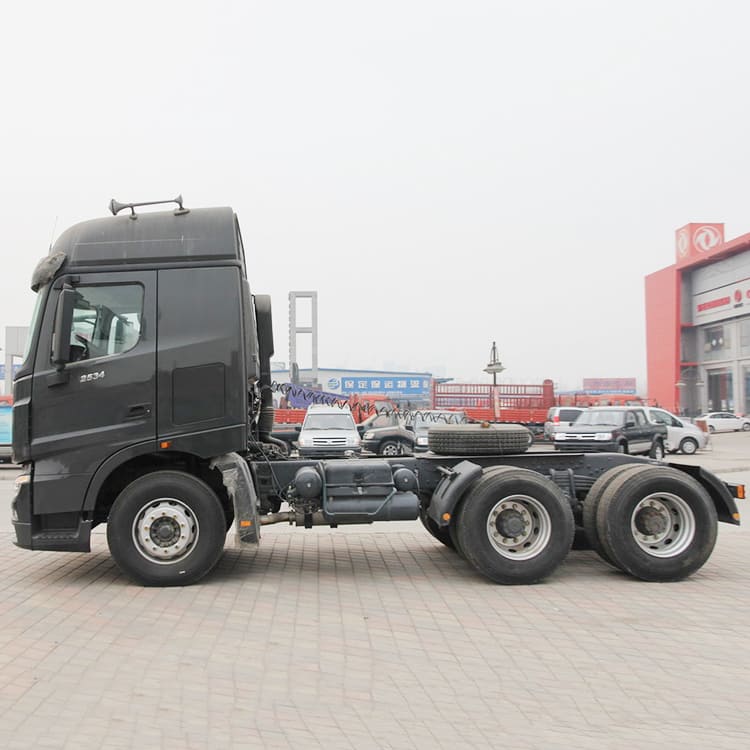

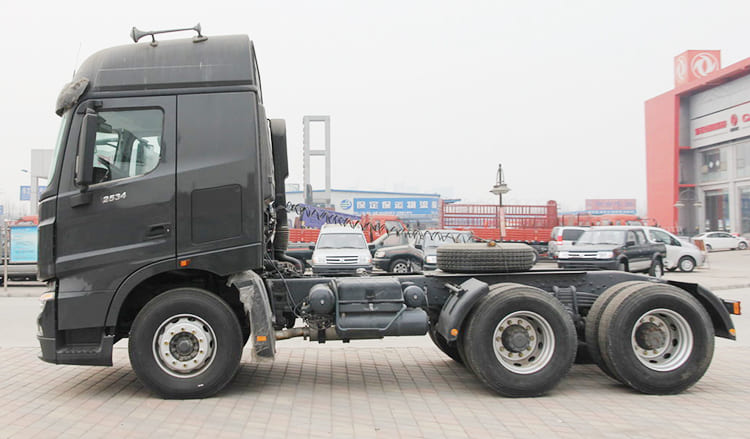

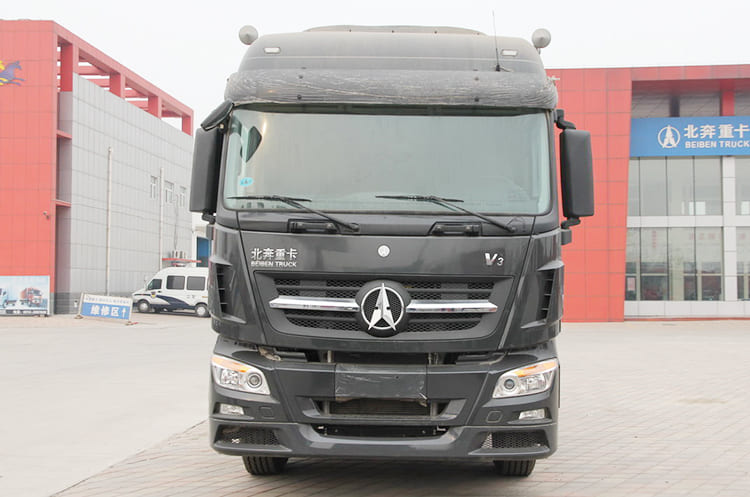

Name: Beiben V3 2534 6x4 Primemover
Drive form: 6X4
Wheelbase: 3200+1350mm
Overall Dimension(mm): 6890x2500x3870
Front Track: 1995mm
Rear track: 1800/1800mm
Vehicle weight: 8.8 tons
Total mass: 25 tons
Total tow mass: 40 tons
Maximum speed: 110km/h
Minimum turning diameter: 17.5 meters
Engine
Engine model: Weichai WP10.340E32
Engine brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1250N m
Maximum torque speed: 1400-1600rpm
Rated speed: 2200rpm

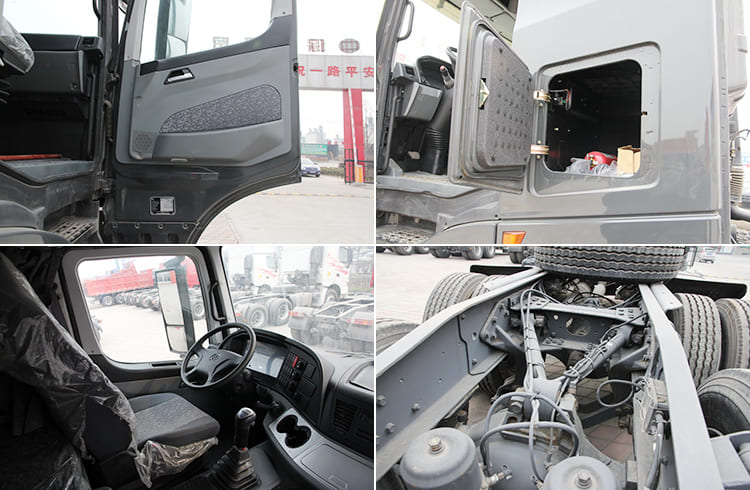

Cab
Cab: High Roof
Lower sleeper width: 750mm
Number of passengers allowed: 3 people
Seat row: single row
Gearbox
Gearbox model: Fast 12JS160TA
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel/Gas Tank Material: Aluminum Alloy
Fuel tank capacity: 400L
Chassis
Rear Axle Description: Semi-floating
Rear axle allowable load: 13000kg
Suspension form: leaf spring/multilayer leaf spring
Number of spring pieces: 3/4
Tire
Number of tires: 10
Tire Specifications: 295/80R22.516PR, 11.00-2018PR, 11.00R2016PR, 12.00-2016PR, 12.00R2014PR
