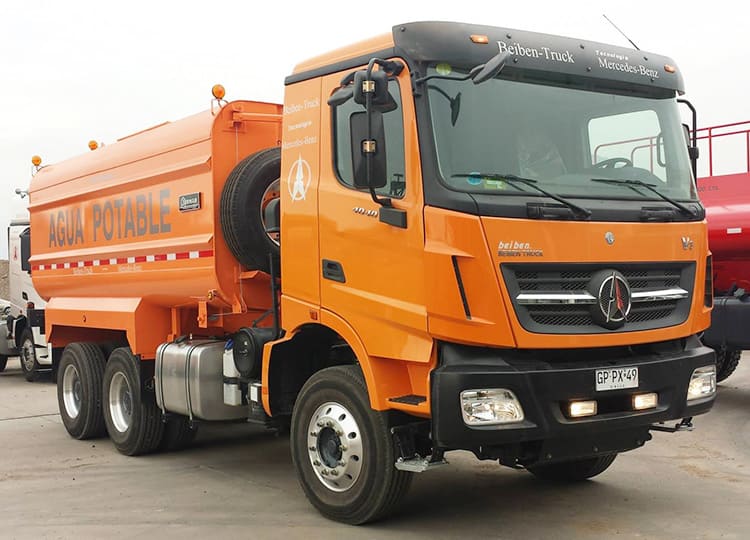

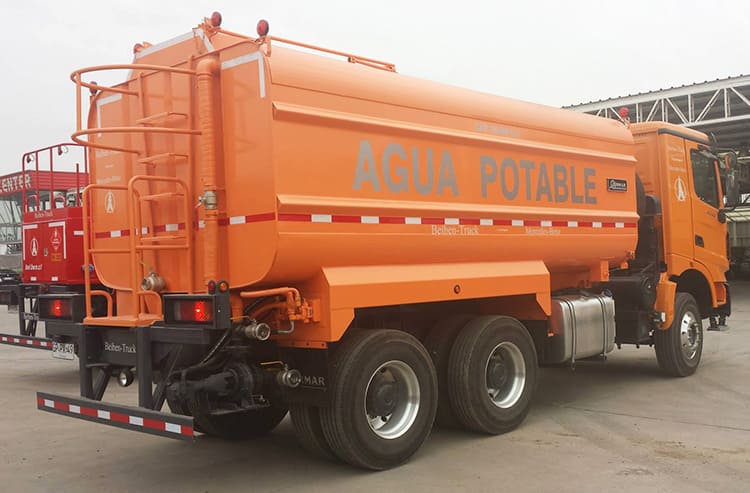

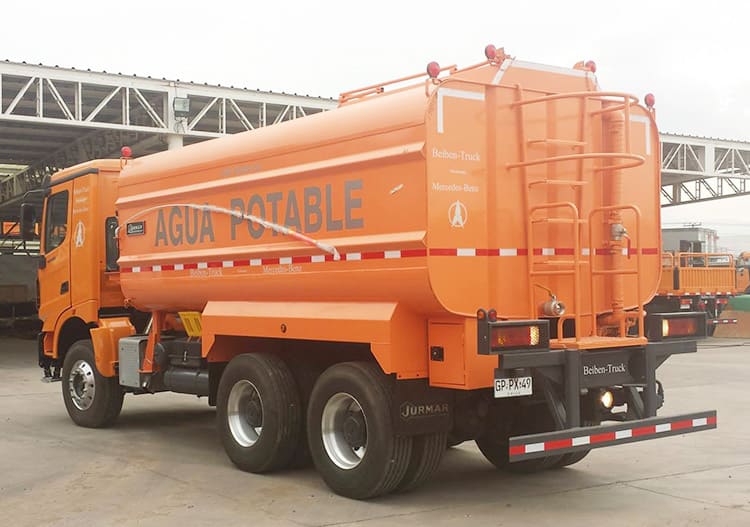

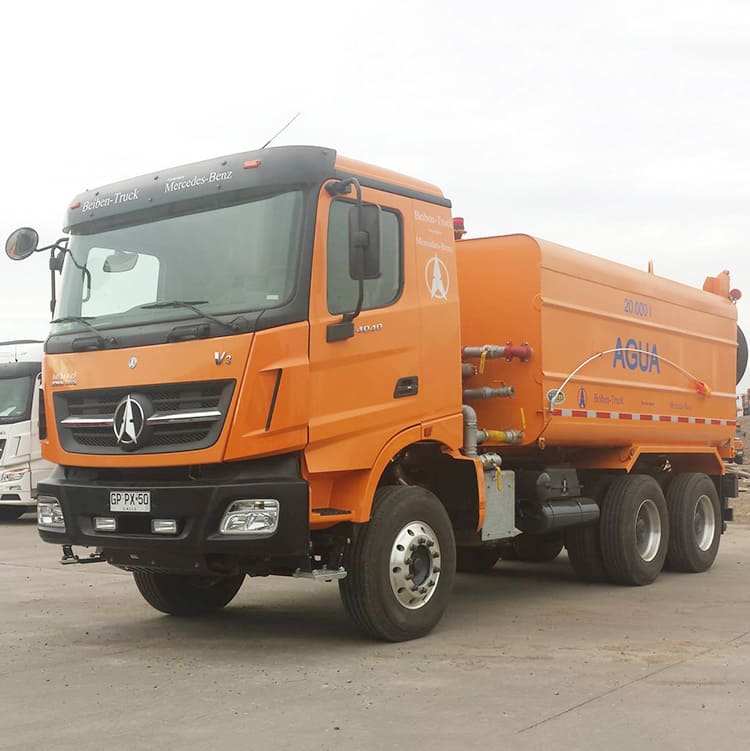

Beiben v3 6x4 20000 liters water tanker truck according to different use environments and purposes, there are a variety of spraying and water transport functions. The multi-function beiben v3 6x4 20000 liters water tanker truck integrates multiple functions and can generally be specially modified according to user requirements. The beiben v3 6x4 20000 liters water tanker truck is equipped with a special high-power sprinkler pump with leading quality in the country, with fire joint, with self-flow valve, with self-priming function
Beiben V3 6x4 20000 Liters Water Tanker Truck for Sale Price Near Me
Beiben V3 6x4 20000 Liters Water Tanker Truck for Sale Price Near Me
Beiben V3 6x4 20000 Liters Water Tanker Truck for Sale Price Near Me
Traction: type 6X4
Driving type: LHD/RHD
Dimension(Lx W xH):（unloaded）10576×2500×3430
Wheel base(mm): 5050+1450
Max speed:（km/h）90
Curb weight（kg）: 12000
Loading Weight（kg）:25,000
Engine
Model:WD615.340
water-cooled，four strokes，6 cylinders in line，turbocharged, directly injection With the exhaust valve brake, EGR (gas exhausted recycling), deisel engine
Displacement（L）:9.726/Diesel
Bore X stroke(mm) :126/130
Max power（kw/rpm）:247/2200 (340hp)
Max torque（Nm/rpm）:1350/1300-1600
Emission : EURO II
Fuel tanker（L）: 400L steel fuel tanker
Clutch
Model: 430 Diaphragm type
Gearbox
Model 9JS150 (Fuller) mechanism, 9gears, 1reverse gear
Brake system
Service brake Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake Engine exhaust brake
Park brake Potential springs pressing on middle and rear wheels
Steering system
Model: ZF8098
Frame Fish belly, shape, variable width, variable sections, side beam structure
Front axle (Mercedes Benz Technology) 7.5T Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology) 13T Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks
Tyre: 12.00R20 Radial tyre Number of tyre:10+1 spare
Electrical system
Battery : 2X12V/135Ah
Generator: 28V-35A
Starter: 5.4Kw/24V
Cab
Mercedes-Benz technology V3 long Cabin, single sleeper with air-conditioner
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
Water tank
Tank capacity: 20,000 liters
Thickness of the tanker body: cthe thickness of the shell is 5mm approx;
