The advantages of the beiben truck ng80 cargo truck with crane are that it has good maneuverability and rapid transfer. The beiben truck ng80 cargo truck with crane can integrate the functions of hoisting and transportation, and improve the utilization rate of resources.
Beiben truck ng80 cargo truck with crane is a device that realizes the lifting, turning and lifting of goods through a hydraulic lifting and telescopic system, usually assembled on a truck.
The beiben truck ng80 cargo truck with crane is a kind of crane installed on the common car chassis or the special car chassis, and its driving cab is set separately from the lifting control room. The advantages of this beiben truck ng80 cargo truck with crane are good maneuverability and rapid transfer. beiben truck ng80 cargo truck with crane is a kind of transport vehicle which is combined with truck mounted crane and chassis. It is composed of lifting arm, turntable, frame, outrigger and other parts. The mechanical action of the beiben truck ng80 cargo truck with crane is realized through the actions of the luffing, telescopic, rotating, hoisting and other mechanisms, and the lifting operation is realized through the combination of different actions.

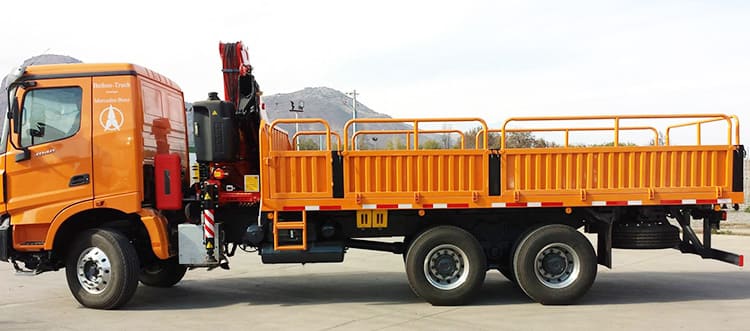

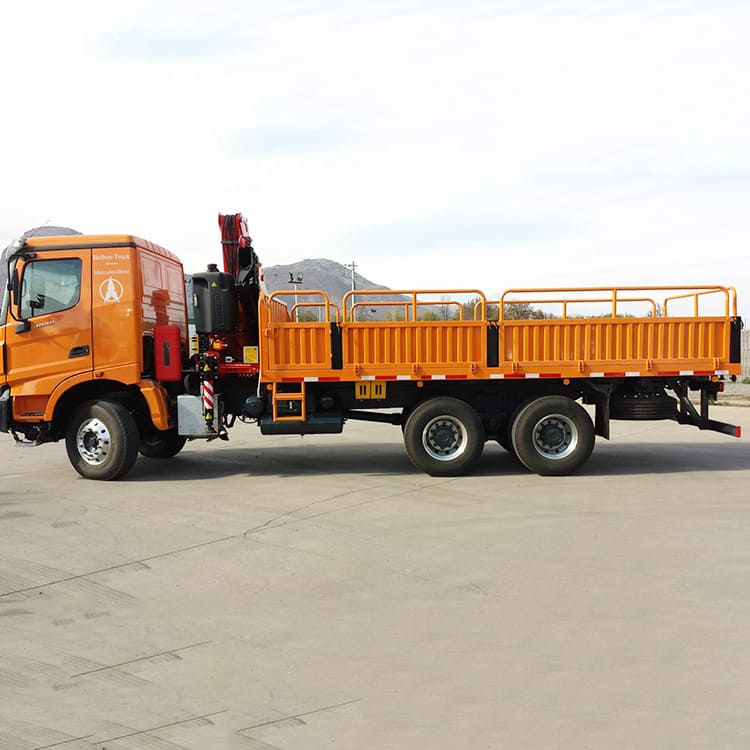

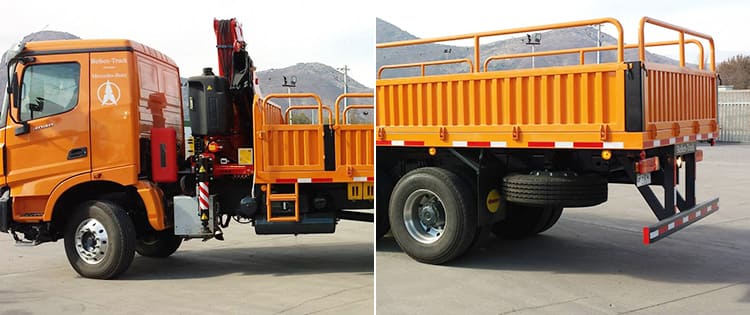

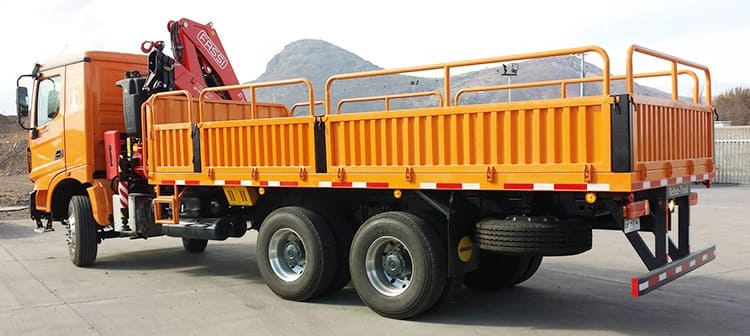

Beiben Truck NG80 Cargo Truck with Crane for Sale Price in Tanzania
Beiben Truck NG80 Cargo Truck with Crane for Sale Price in Tanzania
Beiben Truck NG80 Cargo Truck with Crane for Sale Price in Tanzania
Traction type: 6X4
Driving type: Left hand driving
Dimension(Lx W xH)(unloaded): 10650×2500×3900
Bucket dimension((Lx W xH): 6500X2300X800
Approaching angle/Departure angle(°):26/20
Overhang(front/rear) (mm) : 1410/2666
Wheel base (mm): 5050+1450
Max speed(km/h): 90
Curb weight(kg): 11300
Loading Weight(kg): 30,000
Engine
Steyr technology, made in China
Model: WP10.290E32
Displacement(L): 11.596/Diesel
Bore X stroke (mm): 126/155
Max power(kw/rpm): 213/2200 (290hp)
Max torque(Nm/rpm): 1250/1300-1600
Emission: EURO III
Fuel tanker(L): 400
Clutch
Model: 430 Diaphragm type
Gearbox
Model : 9JS135 (Fuller) mechanism,9gears,1reverse gear, manual,
Brake system
Service brake
Brake gap can be adjusted automatically, double circulation air brake system
Assistant brake
Engine exhaust brake
Park brake
Potential springs pressing on middle and rear wheels
Steering system
Model: D50
Frame Fish belly, shape, variable width, variable sections, side beam structure
Front axle (Mercedes Benz Technology) 7.5T Benz: Double-shoe pneumatic brake, non-driving steering axle
Middle and Rear axle (Mercedes Benz Technology) 13T benz: Double-shoe pneumatic brake, casting, double reduction driving axles with inter-wheel & inter-axles differential locks
Tyre
Model:12.00-20 bias tyre Number of tyre:10+1 spare
Electrical system
Battery 2X12V/135Ah
Generator 28V-35A
Starter 5.4Kw/24V
Cab
Mercedes-Benz technology NG80 short Cabin with air-conditioner
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
Crane
Crane brand: XCMG
Crane model: SQ16ZK4Q
Rated payload: 16T
Dimension(L*W*H)mm: 4098*2522*2462
