The tank body of Beiben ng80 2623 6x4 fuel tank truck is made of high-quality 4-6mm thick carbon steel national standard plate, which can be carbon steel and stainless steel, and aluminum alloy and pure aluminum cans can also be used as needed;
Beiben ng80 2623 6x4 fuel tank truck can be independently divided into compartments and different oil products can be divided into different oil compartments. There are multiple anti-wave baffles in the Beiben ng80 2623 6x4 fuel tank truck, so that the tank has the characteristics of high strength, stable center of gravity, and safe and stable vehicle transportation.
Beiben NG80 2623 6X4 Fuel Tank Truck Price for Sale
Beiben NG80 2623 6X4 Fuel Tank Truck Price for Sale
Beiben NG80 2623 6X4 Fuel Tank Truck Price for Sale

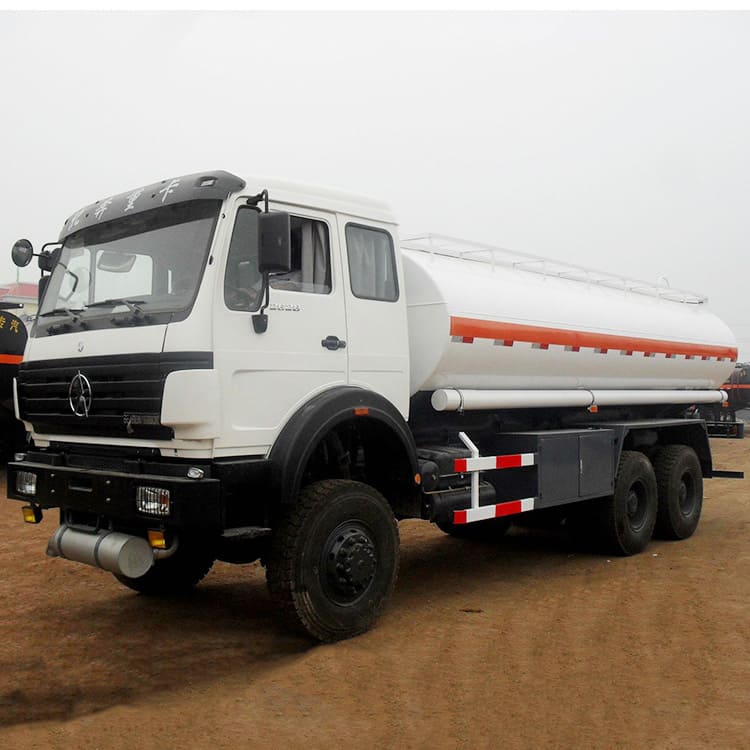

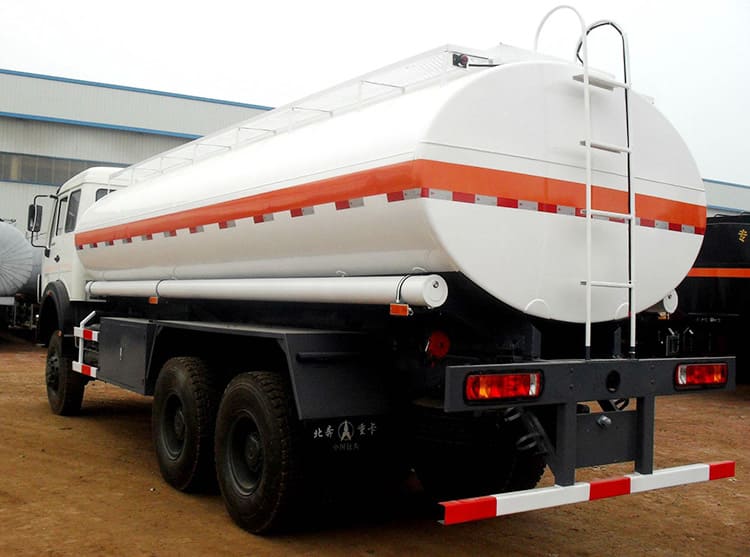

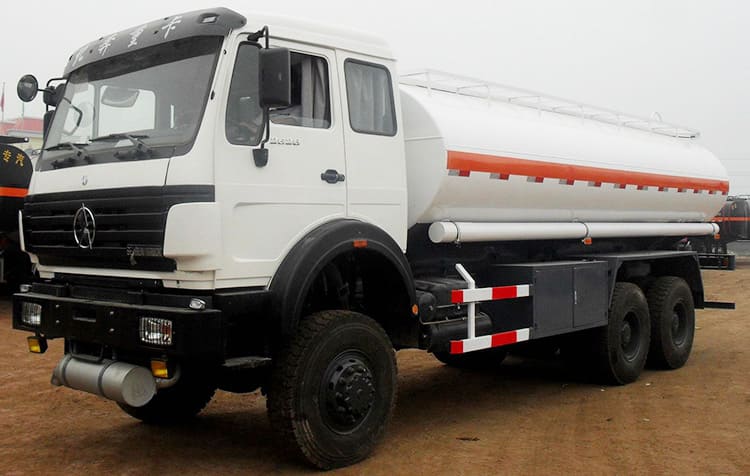

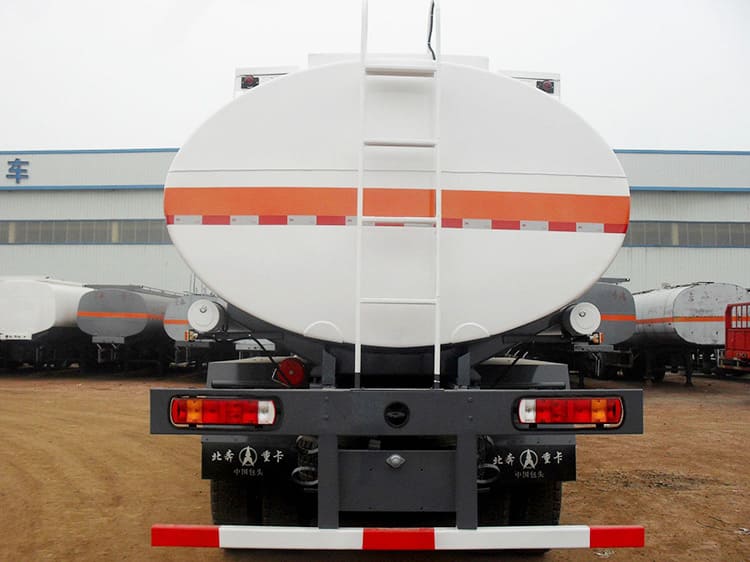

Name: Beiben NG80 2623 6X4 Fuel Tank Truck
Traction type: 6×4
Drive System: LHD
Cabin: NG80B Cabin, Air Conditioner
Engine
Brand： WEICHAI
Model: WD615.50 EuroII
Rated power: 280hp
Engine displacement：9.726 liters
Gearbox: FAST 9 Speeds (9JS135B)
Clutch: Ф430 Diaphragm type
Steering: ZF8098
Axle
Front: BEIEBN 7.5 Ton
Rear: BEIBEN 13 Ton double reduction axle, ratio:5.263
Max. running speed (km/h): 90
Tire: 12.00R20
Fuel tank: 400L
Total mass (kg): 25000
Wheel base (mm): 5050+1450
Overhang (mm) (front/rear): 1410/2666
Track (mm) (front/rear): 1995/1800
Approach / departure angle(°): 26/20
Overall Dimensions（L*W*H）(mm): 11000x2500x3400
PTO: QH50
