Beiben ng80 6x4 concrete mixer truck is composed of automobile chassis, mixing drum, transmission system, water supply device, full power PTO, front and rear brackets of mixing drum, reducer, hydraulic transmission system, feeding and discharging system, operating mechanism and other parts.
The Beiben ng80 6x4 concrete mixer truck adopts the power take-off method of the main vehicle engine. The function of the power take-off device of the Beiben ng80 6x4 concrete mixer truck is to take out the engine power by operating the power take-off switch, and drive the mixing drum through the hydraulic system. Reverse rotation, disconnecting power from the engine after work is over.
Beiben NG80 6X4 Concrete Mixer Truck for Sale Price Manufacturers
Beiben NG80 6X4 Concrete Mixer Truck for Sale Price Manufacturers
Beiben NG80 6X4 Concrete Mixer Truck for Sale Price Manufacturers

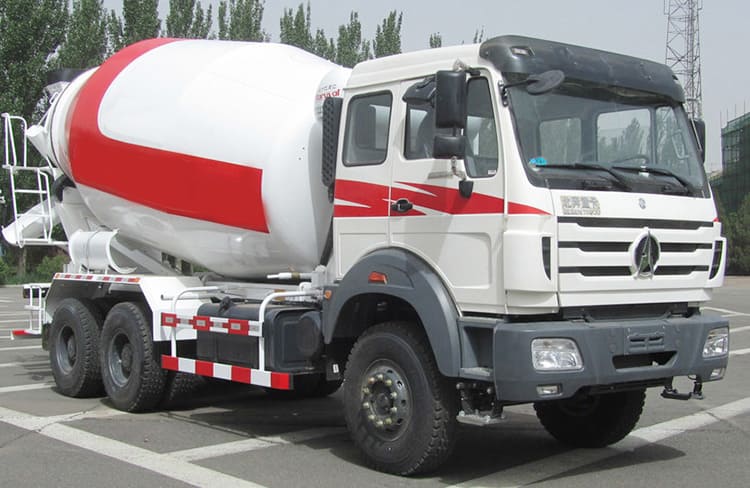

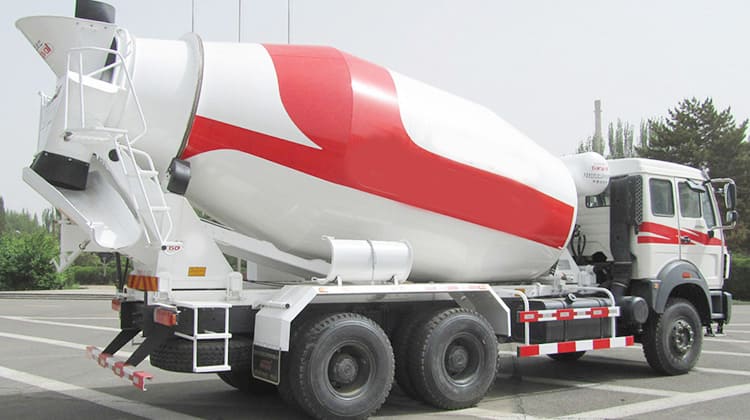

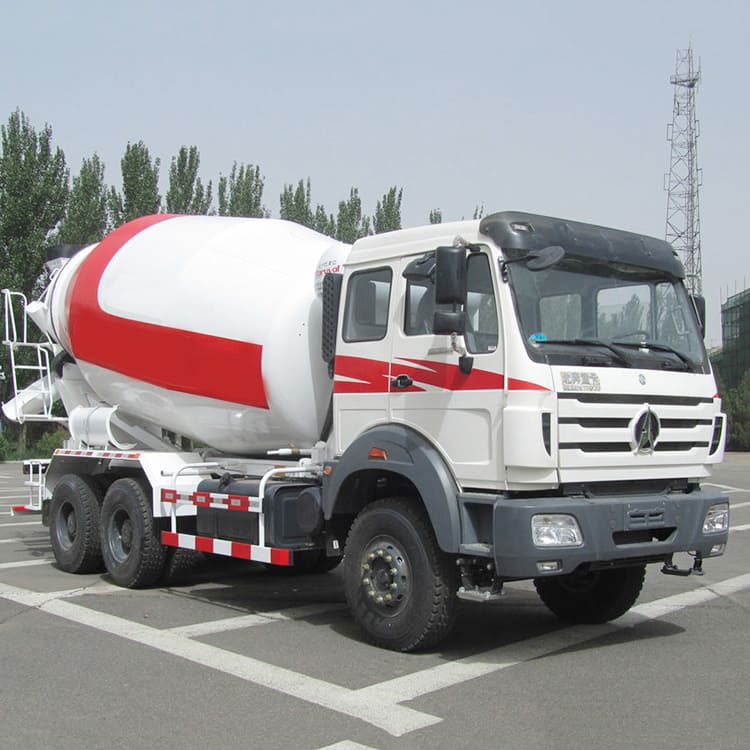

Name: Beiben NG80 6X4 Concrete Mixer Truck
Drive form: 6X4
Body size: 9.405 × 2.5 × 3.98 m
Front suspension/rear suspension: 1.515/2.64 meters
Wheelbase: 3800+1450mm
Rated load: 11.085 tons
Vehicle weight: 13.785 tons
Maximum speed: 90km/h
Front track/rear track: 1995; 1800/1800mm
Engine
Engine model: Weichai WP10.290
Number of cylinders: 6
Maximum output power: 213kW
Maximum horsepower: 290 horsepower
Displacement: 9.726L
Emission standard: Country III
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Vehicle type:
Concrete mixer truck
Stirring volume: 5m³
Chassis
Chassis brand: Beiben heavy truck
Chassis model: ND1250B38J7
Chassis: Beiben Heavy Truck
Number of spring pieces: 10/13
Tire
Number of tires: 10
Tire specification: 12.00-20, 12.00R20, 11.00-20, 11.00R20
