Beiben truck v3 lorry chassis for sale adopts four-point suspension cab and steering patent, and the Beiben truck v3 lorry chassis for sale adopts Siemens bus patent system and Siemens unique patented stepper motor control; adopts European technology door model, integrated lifter, wiring harness, speaker, high reliability, Low noise; Beiben truck v3 lorry chassis for sale using CAN bus control and large-capacity data acquisition technology and storage technology certified by 3C and E-MARK, a number of technologies lead the performance of the vehicle to the first-class level in China.

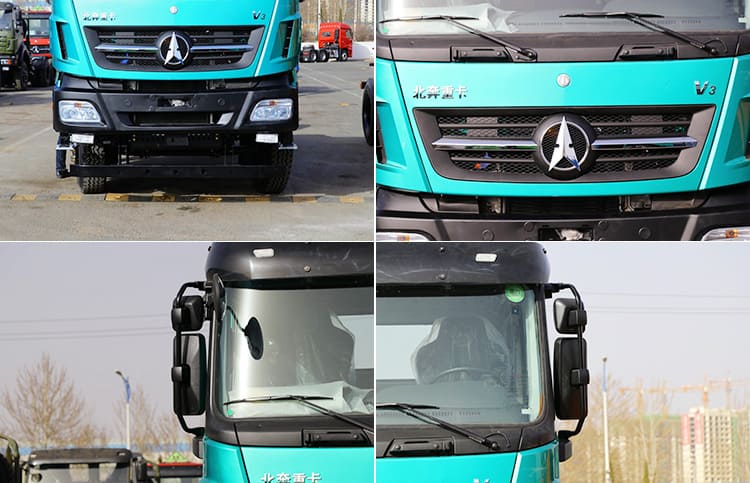

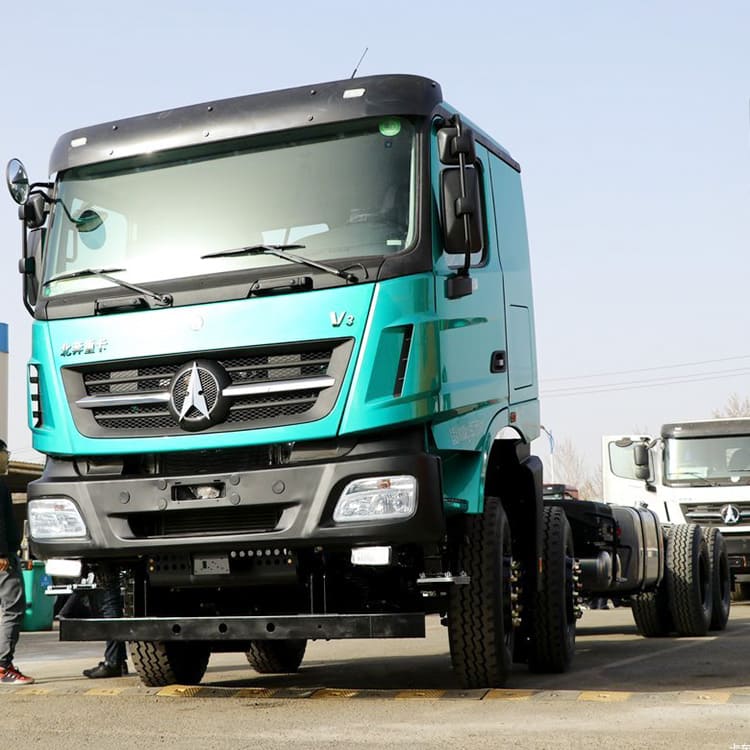

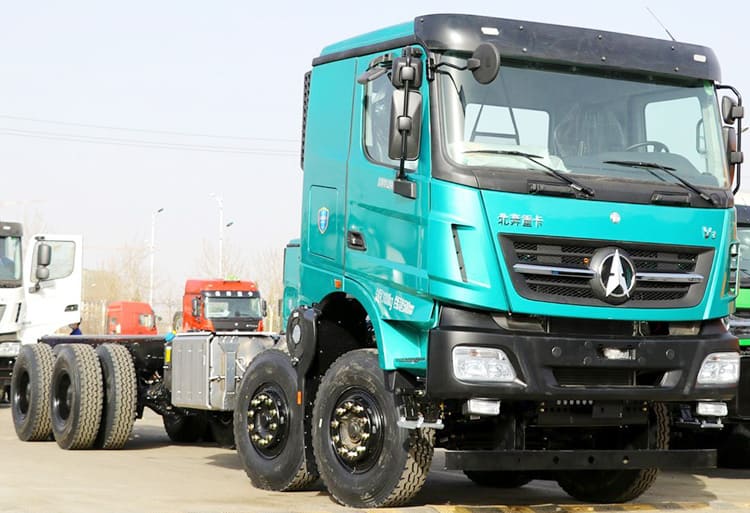

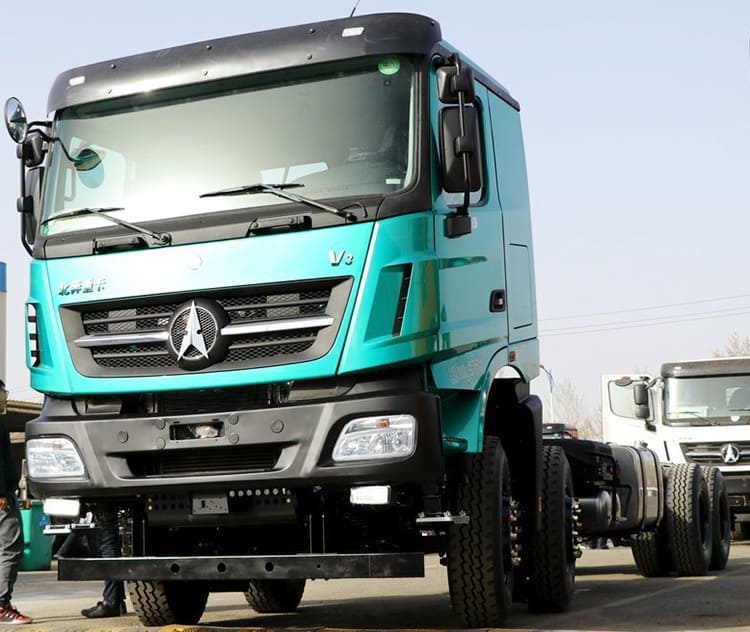

Beiben Truck V3 Lorry Chassis for Sale Price in Tanzania
Beiben Truck V3 Lorry Chassis for Sale Price in Tanzania
Beiben Truck V3 Lorry Chassis for Sale Price in Tanzania
Name：Beiben Truck V3 Lorry Chassis for Sale
Drive form: 8X4
Wheelbase: 1500+5050+1450mm
Box length level: 9.4 meters
Engine: Weichai WP10H350E62
Transmission: 12-speed gearbox
Overall Dimension（mm): 1199x2550x3410
Front Track: 1995/1995mm
Rear track: 1800/1800mm
Vehicle weight: 15.37 tons
Rated load: 15.5 tons
Total mass: 31 tons
Maximum speed: 89KM/h
Approach angle: 17 degrees
Departure angle: 20 degrees
Front suspension/rear suspension: 1.515/2.475 meters
Engine
Engine model: Weichai WP10H350E62
Engine Brand: Weichai
Engine common name: Weichai WP10
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.5L
Maximum output power: 257kw
Maximum horsepower: 350 horsepower
Maximum torque: 1700N m
Maximum torque speed: 1000-1400RPM
Rated speed: 1900RPM
Engine form: CR+DOC+DPF+Hi_SCR
Cargo box
Cargo box form: fence type
Cargo box length: 9.4 meters
Container width: 2.3 meters
Cargo height: 0.5 meters
Cab
Cab: V3
Number of passengers allowed: 2
Seat row: half row
Main driver seat form: airbag shock absorber seat
Transmission parameters
Transmission model: 12-speed gearbox
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Chassis
Front axle allowable load: 6500/6500KG
Rear axle allowable load: 18000 (two axles) KG
Number of leaf springs: 12/12/13
Tire
Tire specification: 12.00R20 18PR
Number of tires: 12
