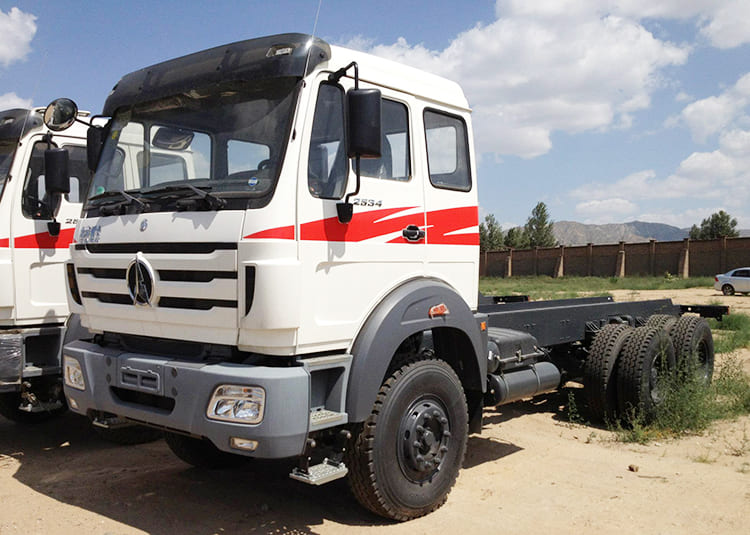

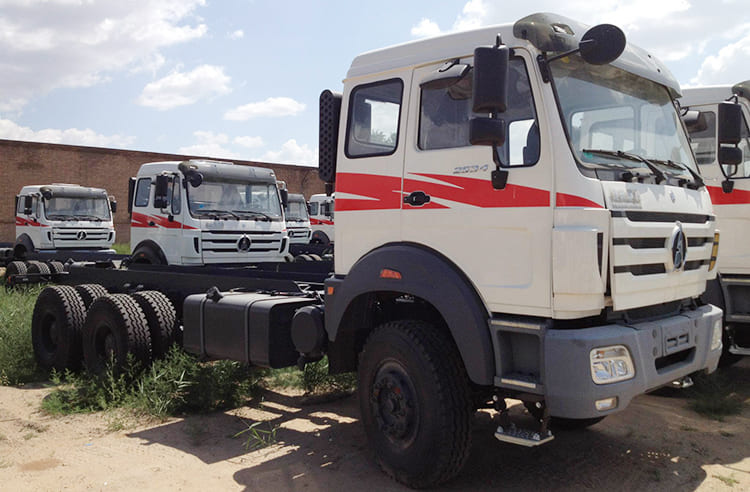

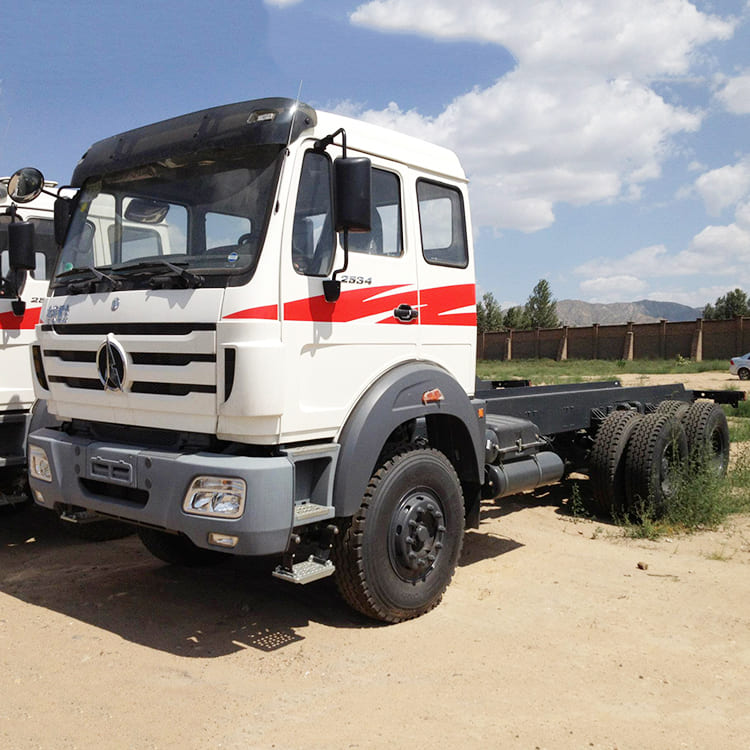

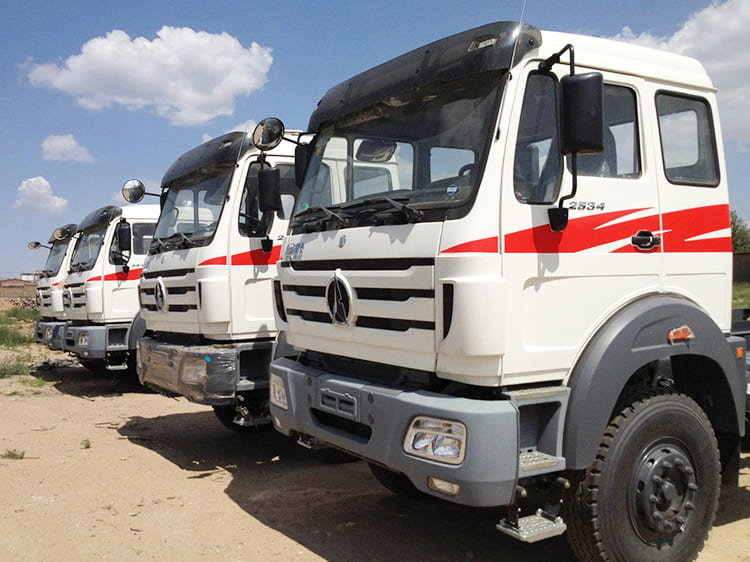

Beiben NG80 2534 6X4 Lorry Truck

Beiben NG80 2534 6X4 Lorry Truck

Beiben ng80 2534 6x4 lorry truck uses first-class manufacturing technology to make the high-quality body steel plate as a whole by stamping and forming, and the welding process is high. The use of composite sandwich steel plates for group welding and the use of all-steel skeleton ensures the structural strength of Beiben ng80 2534 6x4 lorry truck and improves safety.

Beiben ng80 2534 6x4 lorry truck give full play to the technical advantages of Mercedes-Benz,  use well-known parts suppliers from Weichai and Fast.

Beiben NG80 2534 6X4 Lorry Truck for Sale in Nigeria

Beiben NG80 2534 6X4 Lorry Truck for Sale in Nigeria

Beiben NG80 2534 6X4 Lorry Truck for Sale in Nigeria

Beiben NG80 Lorry Truck Specification

Type: Beiben NG80 2534 6X4 Lorry Truck

Drive form: 6X4

Wheelbase: 5050+1450mm

Engine: Weichai WP10.350E53

Gearbox: Fast 10JSD160

Rear axle ratio: 4.769

Overall Dimension(mm): 10601x2550x3370

Front Track: 1995mm

Rear track: 1800/1800mm

Vehicle weight: 15.3 tons

Rated load: 15.505 tons

Total mass: 31 tons

Maximum speed: 90KM/h

Approach angle: 27 degrees

Departure angle: 26 degrees

Front suspension/rear suspension: 1.435/2.655 meters

Engine

Engine model: Weichai WP10.350E53

Engine Brand: Weichai

Engine common name: Weichai WP10

Number of cylinders: 6

Fuel Type: Diesel

Cylinder arrangement: in-line

Displacement: 9.726L

Maximum output power: 257kw

Maximum torque: 1600N m

Maximum torque speed: 1200-1600RPM

Rated speed: 1900RPM

Engine form: Electronically controlled high pressure common rail + SCR

Cab

Number of passengers allowed: 3 people

Seat row: half row

Transmission parameters

Gearbox

Model: Fast 10JSD160

Gearbox brand: Fast

Shift mode: manual

Forward gear: 10th gear

Number of reverse gears: 2

Chassis

Front axle allowable load: 7000KG

Rear axle allowable load: 18000 (two axles) KG

Speed ​​ratio: 4.769

Number of spring pieces: 10/13

Tire

Tire specifications:

11.00R20 18PR, 12.00R20 16PR, 315/80R22.5 18PR/315/80R22.5 16PR

Number of tires: 10
