Beiben ng80 4x4 cargo lorry has high-efficiency auxiliary braking, exhaust braking, in-cylinder braking, hydraulic retarder auxiliary braking system, while increasing the vehicle's downhill speed, reducing the frequency of brake use, reducing the wear of brake pads and brake drums, and improving beiben ng80 4x4 cargo lorry operation safety.
Beiben ng80 4x4 cargo lorry has leading structural design concept, Mercedes-Benz double cavity structure + high-strength skeleton cab is adopted to effectively ensure the living space inside the cab.
The cab of the Beiben ng80 4x4 cargo lorry is made of 1mm thick ST12, ST14, ST16 customized high-strength special steel plates, with high strength and impact resistance. Beiben ng80 4x4 cargo lorry has high-efficiency auxiliary braking, exhaust braking, in-cylinder braking, hydraulic retarder auxiliary braking system, while increasing the vehicle's downhill speed, reducing the frequency of brake use, reducing the wear of brake pads and brake drums
Beiben NG80 4x4 Cargo Lorry for Sale in Ghana
Beiben NG80 4x4 Cargo Lorry for Sale in Ghana
Beiben NG80 4x4 Cargo Lorry for Sale in Ghana
Beiben NG80 4x4 Cargo Lorry for Sale in Ghana

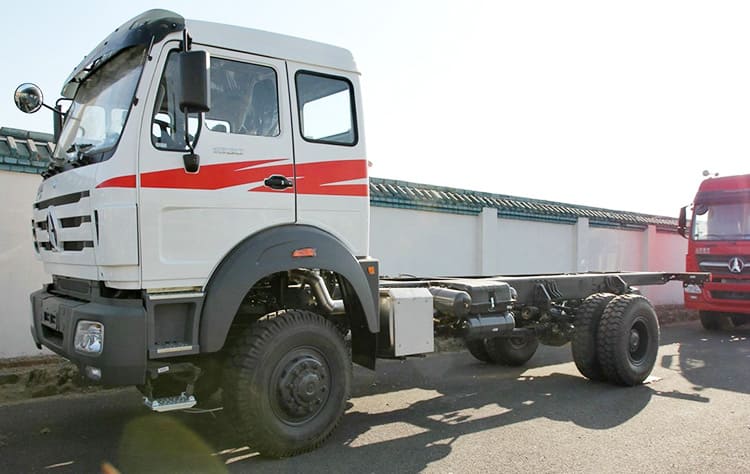

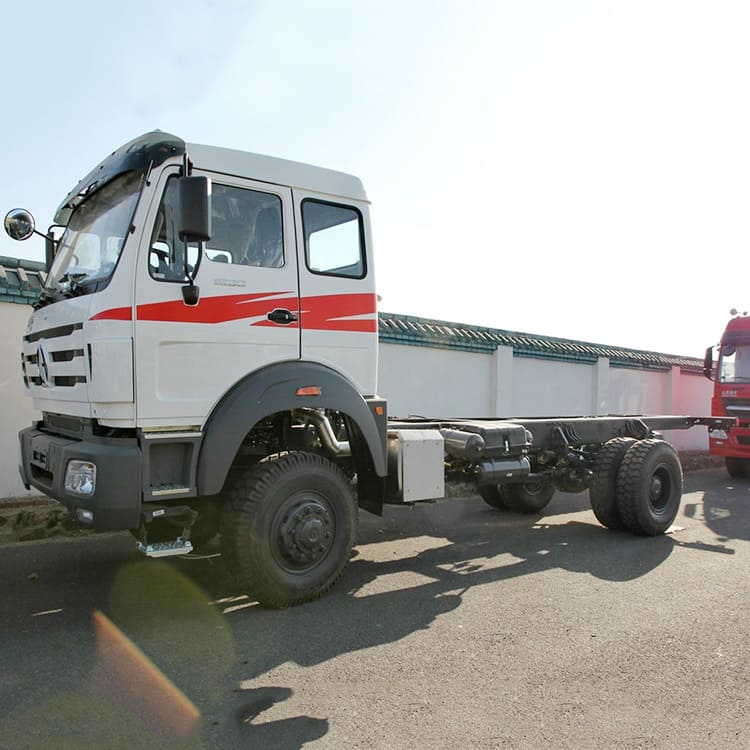

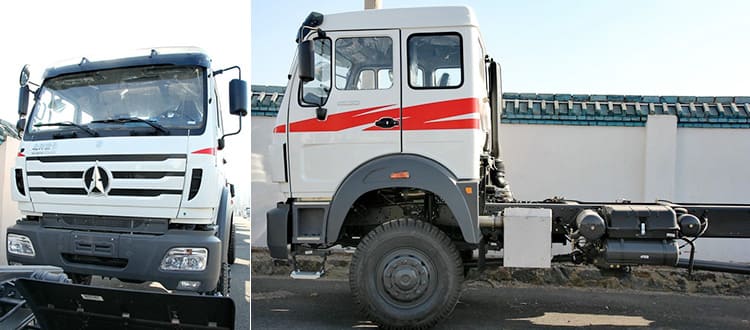

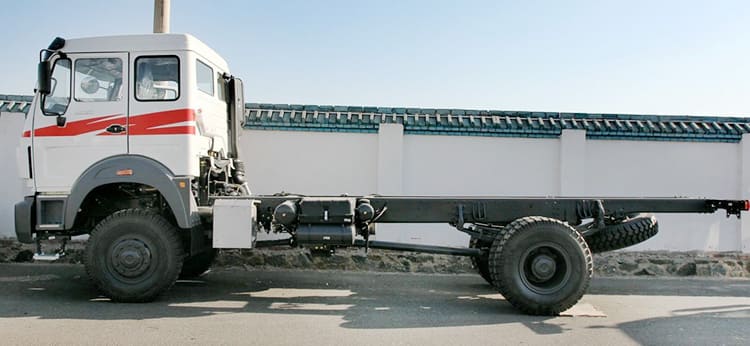

Type: Beiben NG80 4x4 Cargo Lorry for sale
Drive form: 4X4
Wheelbase: 4800mm
Engine: Weichai WP10.300E40
Gearbox: Fast 9JS150A
Rear axle ratio: 5.263
Overall Dimension(mm): 8820x2500x3340
Front Track: 1990mm
Rear track: 1800mm
Vehicle weight: 7.92 tons
Rated load: 7.95 tons
Total mass: 16 tons
Maximum speed: 90KM/h
Approach angle: 32 degrees
Departure angle: 23 degrees
Front suspension/rear suspension: 1.41/2.61 meters
Engine
Engine model: Weichai WP10.300E40
Engine common name: Weichai WP10
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum output power: 221kw
Maximum horsepower: 300 horsepower
Maximum torque: 1390N m
Maximum torque speed: 1200-1500RPM
Rated speed: 1900RPM
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Cargo box
Cargo box form: fence type
Overall Dimension(mm): 6230x2300x600

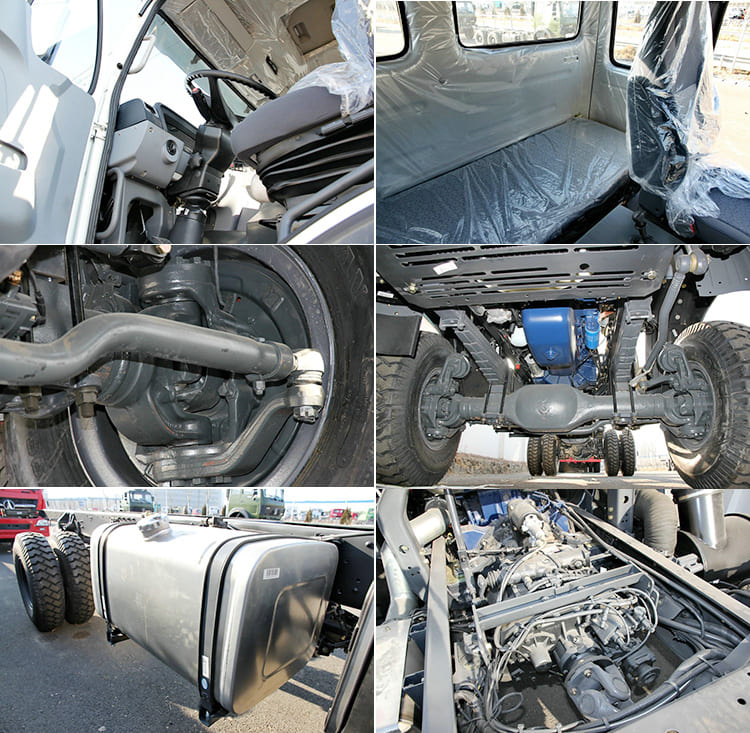

Cab
Cab: Flat Roof
Number of passengers allowed: 2
Seat row: half row
Gearbox
Gearbox model: Fast 9JS150A
Shift mode: manual
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis
Front axle description: 7 tons
Front axle allowable load: 6000KG
Rear axle description: 13 tons double reduction axle
Rear axle allowable load: 10000KG
Speed ratio: 5.263
Number of spring pieces: 10/8+6
Tire
Tire specification: 12.00R20
Number of tires: 6
