Beiben ng80 1630 4x4 box cargo truck is at the world's leading level in terms of technical level and manufacturing techniques.
Beiben ng80 1630 4x4 box cargo truck have their own advantages, good performance, excellent configuration, and professional personnel for further study, and the cost performance of the products is extremely high. The cab of Beiben ng80 1630 4x4 box cargo truck adopts the opotimized technology, which makes the driver comfortable and reduces fatigue during long-distance transportation.
Beiben ng80 1630 4x4 box cargo trucks Price Philippines
Beiben ng80 1630 4x4 box cargo trucks Price Philippines
Beiben ng80 1630 4x4 box cargo trucks Price Philippines

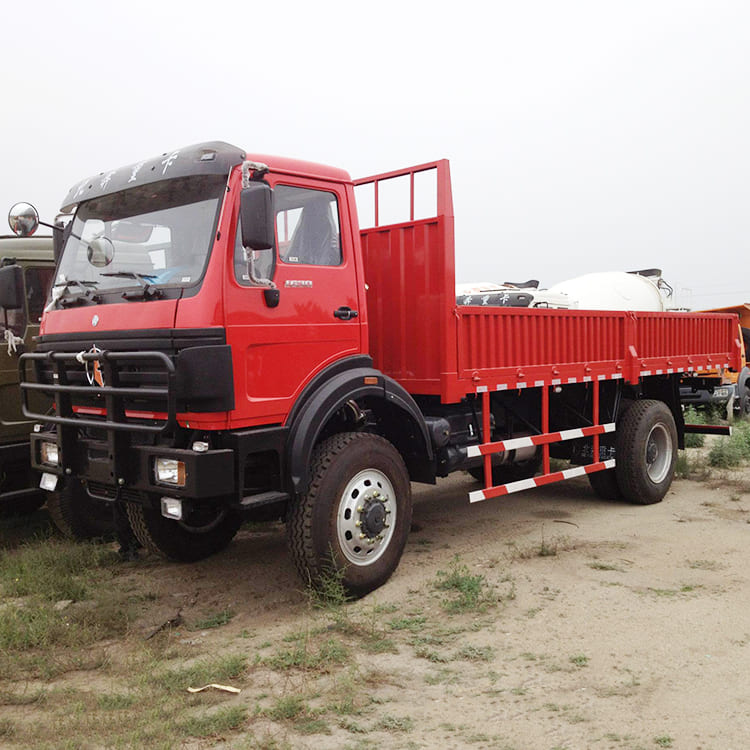

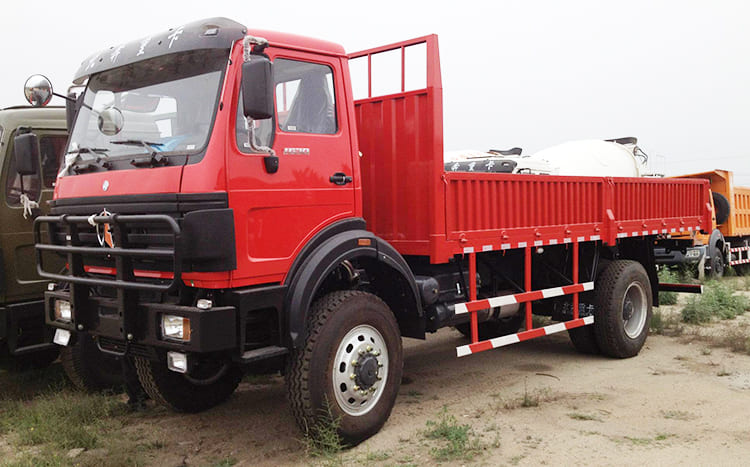

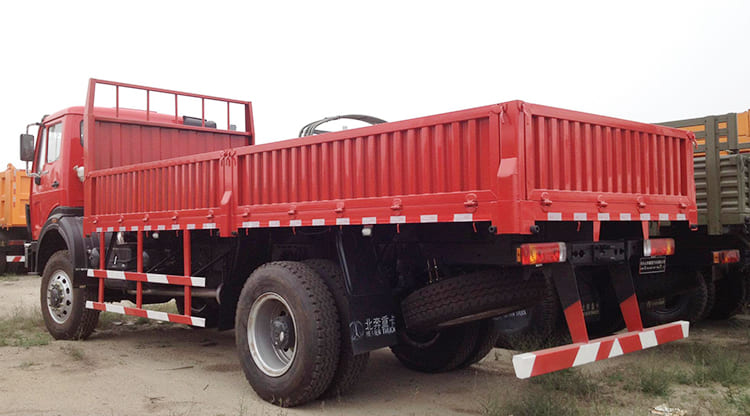

Type: Beiben ng80 1630 4x4 box cargo truck
Drive form: 4X4
Wheelbase: 4800mm
Engine: Weichai WP10.300E40
Gearbox: Fast 9JS150A
Rear axle ratio: 5.263
Overall Dimension(mm): 8820x2500x3340
Front Track: 1990mm
Rear track: 1800mm
Vehicle weight: 7.92 tons
Rated load: 7.95 tons
Total mass: 16 tons
Maximum speed: 90KM/h
Approach angle: 32 degrees
Departure angle: 23 degrees
Front suspension/rear suspension: 1.41/2.61 meters
Engine
Engine model: Weichai WP10.300E40
Engine common name: Weichai WP10
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum output power: 221kw
Maximum horsepower: 300 horsepower
Maximum torque: 1390N m
Maximum torque speed: 1200-1500RPM
Rated speed: 1900RPM
Engine form: water-cooled, four-stroke, brake with exhaust valve, direct injection, supercharged and intercooled
Cargo box
Cargo box form: fence type
Overall Dimension(mm): 6230x2300x600
Cab
Cab: Flat Roof
Number of passengers allowed: 2
Seat row: half row
Gearbox
Gearbox model: Fast 9JS150A
Shift mode: manual
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis
Front axle description: 7 tons
Front axle allowable load: 6000KG
Rear axle description: 13 tons double reduction axle
Rear axle allowable load: 10000KG
Speed ratio: 5.263
Number of spring pieces: 10/8+6
Tire
Tire specification: 12.00R20
Number of tires: 6
