North benz v3 4x2 2540 truck head adopts traditional ABS, exhaust brake and hydraulic retarder to further improve the safety of vehicle operation, and selects a full set of WABCO control valves to effectively shorten the braking response time
BEIBEN north benz v3 4x2 2540 truck head design always puts life safety first.
The north benz v3 4x2 2540 truck head adopts traditional ABS, exhaust brake and hydraulic retarder are used to further improve the safety of north benz v3 4x2 2540 truck head operation. A full set of WABCO control valves are used. The design team fully optimizes the pipeline, which can effectively shorten the braking response time.
Compared with other brands of trucks, the braking response time of this north benz v3 4x2 2540 truck head is shortened by at least 600ms, the braking distance at 60km/h is reduced by 3.8 meters, and the safety is greatly improved

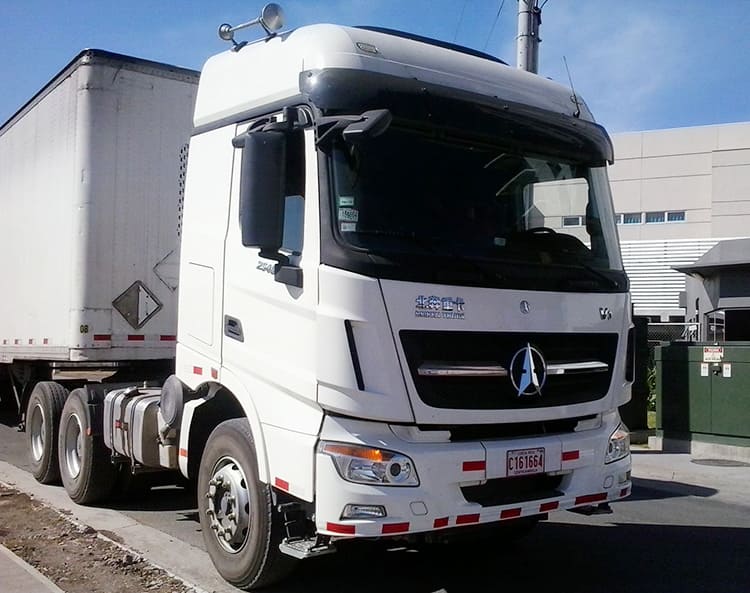

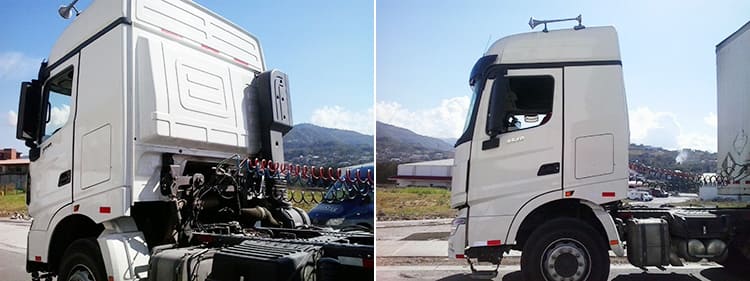

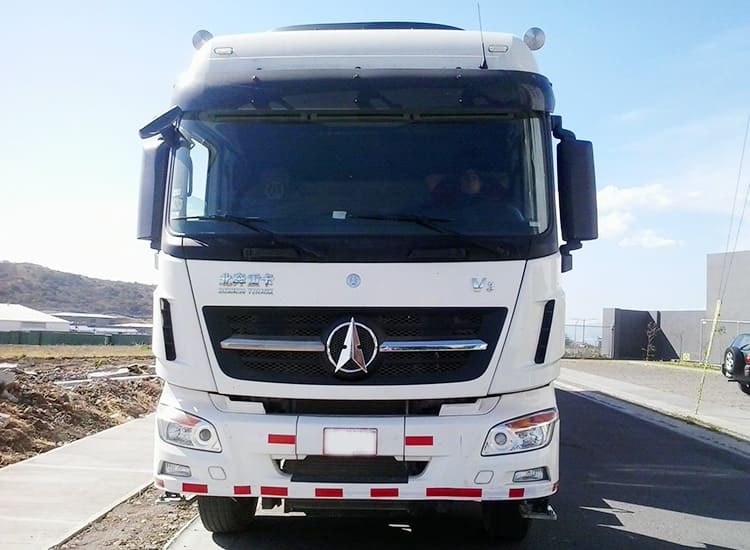

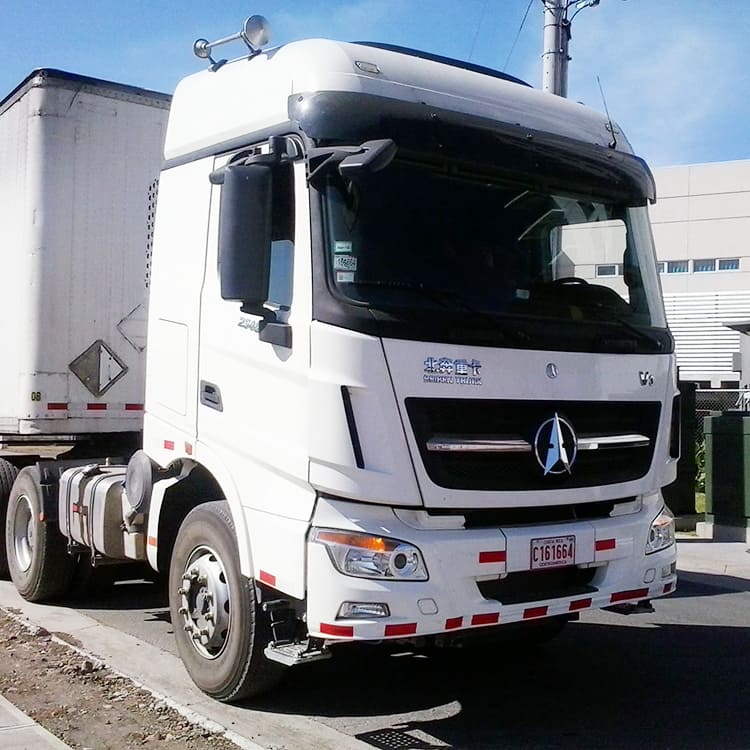

North Benz V3 4x2 2540 Truck Head for Sale in Ghana
North Benz V3 4x2 2540 Truck Head for Sale in Ghana
North Benz V3 4x2 2540 Truck Head for Sale in Ghana
Name: North Benz V3 4x2 2540 Truck Head
Drive form: 4X2
Overall Dimension (mm): 5995x2490x3790
Cab
Cab: Flat Roof
Lower sleeper width: 750mm
Number of passengers allowed: 2
Wheelbase: 3500mm
Front Track: 1995mm
Rear track: 1800mm
Vehicle weight: 7.02 tons
Total mass: 18 tons
Total Traction Mass: 34.85 tons
Maximum speed: 90km/h
Engine
Engine model: Weichai WP10.336
Engine Brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum output power: 247kW
Maximum torque: 1250N m
Maximum torque speed: 1200-1600rpm
Rated speed: 2200rpm
Transmission
Gearbox model: Fast 12JS160TA
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis
Rear axle allowable load: 11300kg
Speed ratio: 4.7
Suspension form: leaf spring
Number of spring pieces: 13/9+8
Tire
Number of tires: 6
Tire specifications: 12.00-20, 12.00R20, 11.00-20, 11.00R20
