Beiben v3 1834 4x2 tractor head axle adopts Mercedes-Benz technology, advanced and precise Mercedes-Benz axles, stable quality, large transmission torque, strong bearing gravity, and German DIN standard, and runs smoothly. The front axle load is 7.5 tons, the rear axle of the Beiben v3 1834 4x2 tractor head load is 13 tons.
Beiben v3 1834 4x2 tractor head uses WP13 Weichai fuel and gas series to give customers different levels of choices.

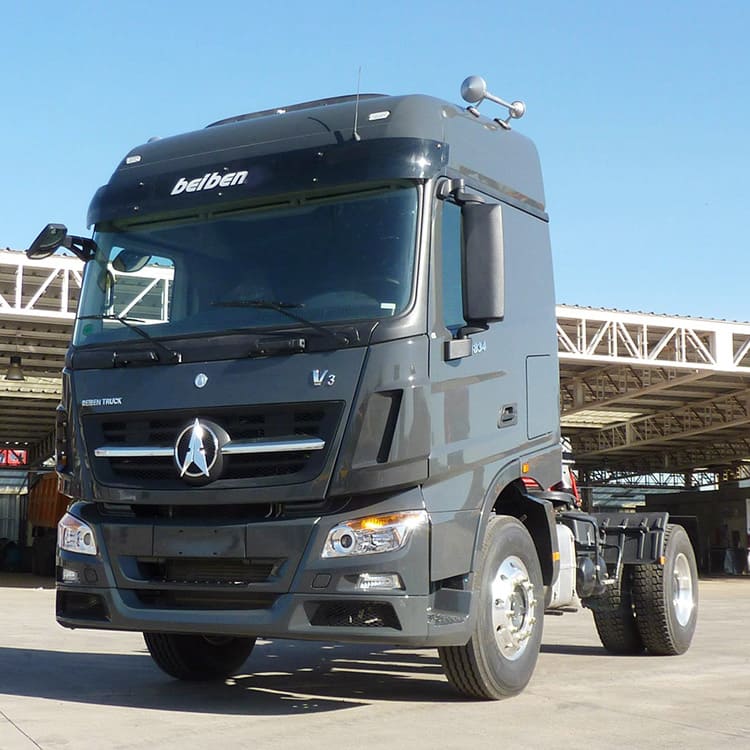

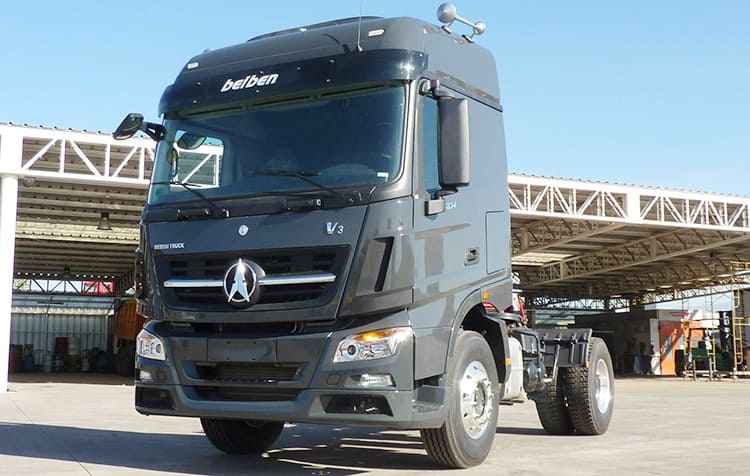

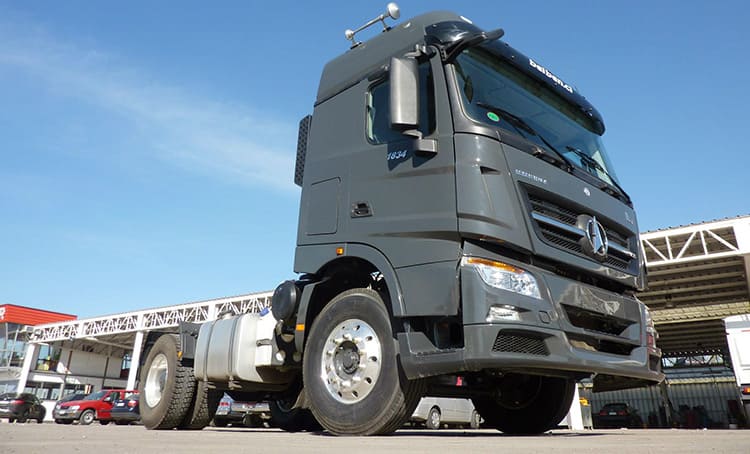

Beiben V3 1834 4x2 Tractor Head for Sale in Nigeria
Beiben V3 1834 4x2 Tractor Head for Sale in Nigeria
Beiben V3 1834 4x2 Tractor Head for Sale in Nigeria
Name: Beiben V3 1834 4x2 Tractor Head

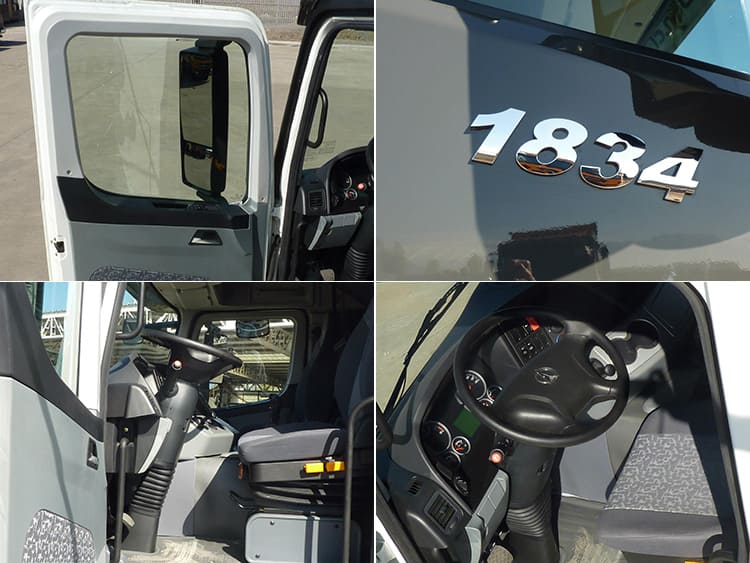

Cab: Long High cabin, two sleepers with A/C
Overall size: 7050x2500x3840
Weight in kg Kerb. mass: 8800 kg
Total mass: 40000kg
Maximum driving speed(km/h) : 90
Fifth wheel ： 16070kg
Engine
Brand: WEICHAI
Diesel 4 stroke direct injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling
Engine model: WP12.420E32
EURO II/EUROIII emission standard
Maximum output:420hp@2200rpm
Number of cylinder:6
Displacement: 11.926L
Clutch
Single-plate dry coil spring clutch,diameter 420mm,hydraulically operating with air assistance
Transmission：Fuller 12JS200T transmission.
Front Axle: Benz 7.5tons drum brake
Rear Axle: Benz type double reduction drive axle, ratio=5.2
Steering: TAS85
Wheel & Types
Rims:8.5-20
Tyre:12.00R20
Optional: 12R22.5//315/80R22.5
Radial tire is optional
ElectricsOperating voltage: 24V,negative grounded
Wheel base: 3450+1450
