The cab of the beiben truck v3 6x4 tracteyr camion adopts the double cavity structure and high-strength frame of Mercedes-Benz technology, and high-strength steel plates conforming to ST12, ST14 and ST16 standards.
This beiben truck v3 6x4 tracteyr camion is a new model researched and developed by Beiben to improve the efficiency of high-speed logistics.
This beiben 6x4 tracteyr camion was designed with the safety of its occupants first. The cab of beiben truck v3 6x4 tracteyr camion adopts the double-cavity structure and high-strength frame of Mercedes-Benz technology, and uses high-strength steel plate with a thickness of 1 mm to ensure the safety of the driver.

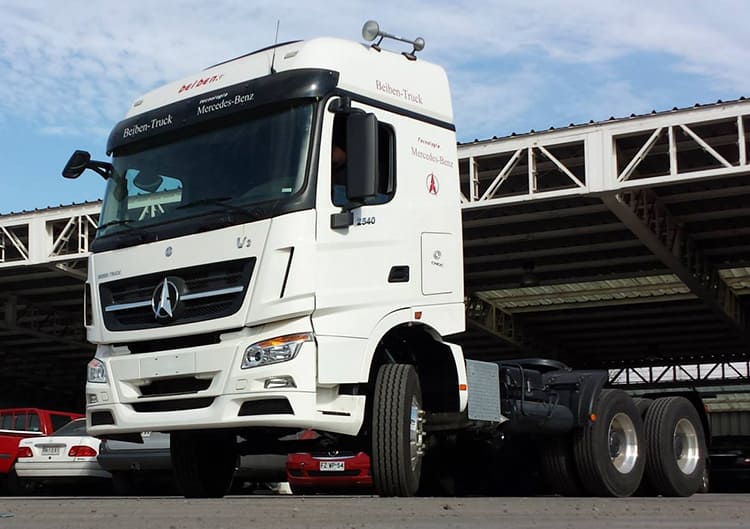

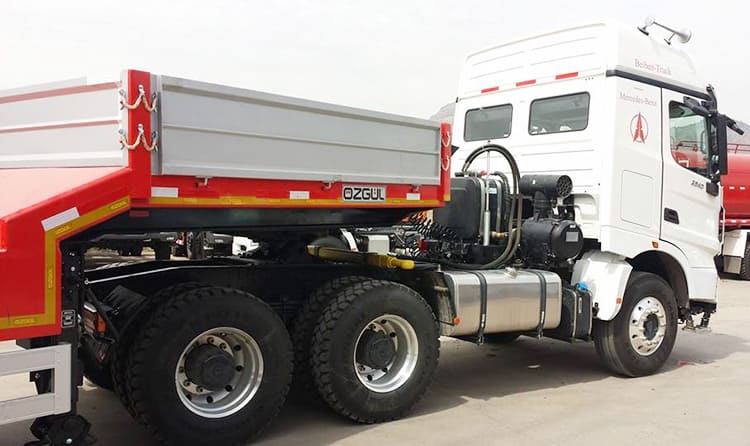

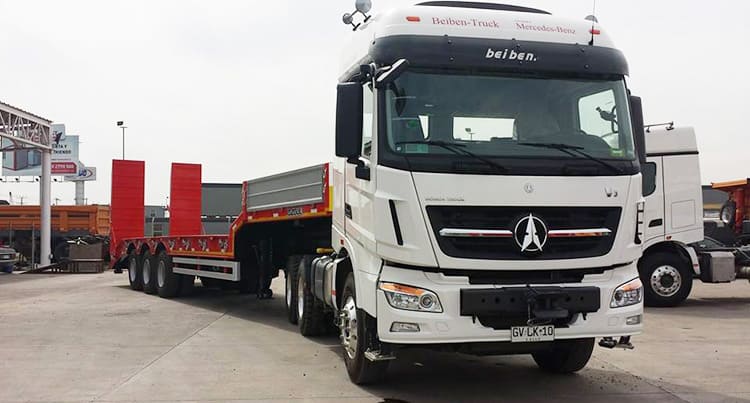

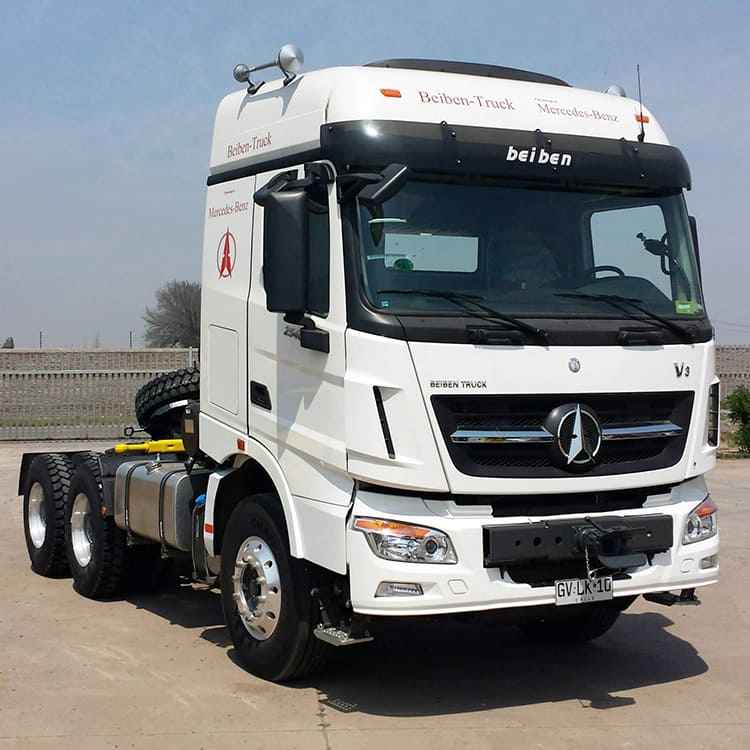

BeiBen Truck V3 | Beiben 6X4 2540 Tracteyr Camion for Sale in Kenya
BeiBen Truck V3 | Beiben 6X4 2540 Tracteyr Camion for Sale in Kenya
BeiBen Truck V3 | Beiben 6X4 2540 Tracteyr Camion for Sale in Kenya
Name: BeiBen Truck V3 6X4 Tracteyr Camion
Drive model: 6X4
Overall Dimension (mm): 7240x2499x3600
Wheelbase: 3450+1450mm
Front Track: 1995mm
Rear track: 1800/1800mm
Vehicle weight: 9.7 tons
Total mass: 25 tons
Tow total mass: 39.105 tons
Maximum speed: 100km/h
Cab
Cab: Flat Roof
Lower sleeper width: 750mm
Number of passengers allowed: 2
Engine
Engine model: Weichai WP10.375
Engine brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum output power: 276kW
Maximum torque: 1460N m
Maximum torque speed: 1200-1600rpm
Rated speed: 2200rpm
Transmission
Gearbox model: Fast 12JS200TA
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel Tank Material: Aluminum Alloy
Fuel tank capacity: 400L
Chassis
Rear axle description: Parallel double axle
Rear axle allowable load: 18000kg
Speed ratio: 5.92
Suspension form: leaf spring
Number of spring pieces: 13/13, 3/4
Tire
Number of tires: 10
Tire Specifications: 315/80R22.5-16PR, 11.00-20-18PR, 11.00R20-16PR, 12.00-20-16PR, 12.00R20-14PR
