The beiben ng80 6x2 trailer truck head has achieved a weight reduction of 200kg through the optimization of technology, structure and materials, which reduces fuel consumption and saves costs.
The beiben ng80 6x2 trailer truck head has achieved a weight reduction of 200kg through the optimization of technology, structure and materials. The beiben ng80 6x2 trailer truck head also innovatively arranges the air filter under the cab, which increases the radius of the front clearance of the vehicle by 233mm. The Buyer can be equipped with larger trailers, and it is not a problem to pull more than 1.65 cubic meters of cargo.
Beiben NG80 2434 6x2 Trailer Truck Head for sale Price
Beiben NG80 2434 6x2 Trailer Truck Head for sale Price
Beiben NG80 2434 6x2 Trailer Truck Head for sale Price

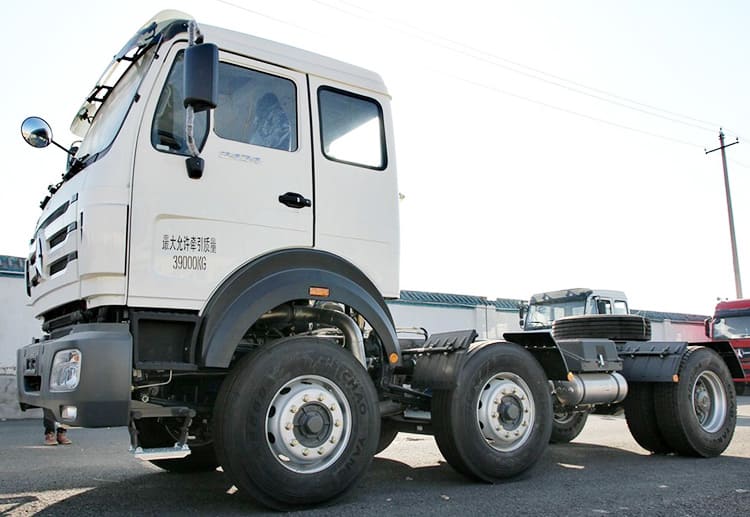

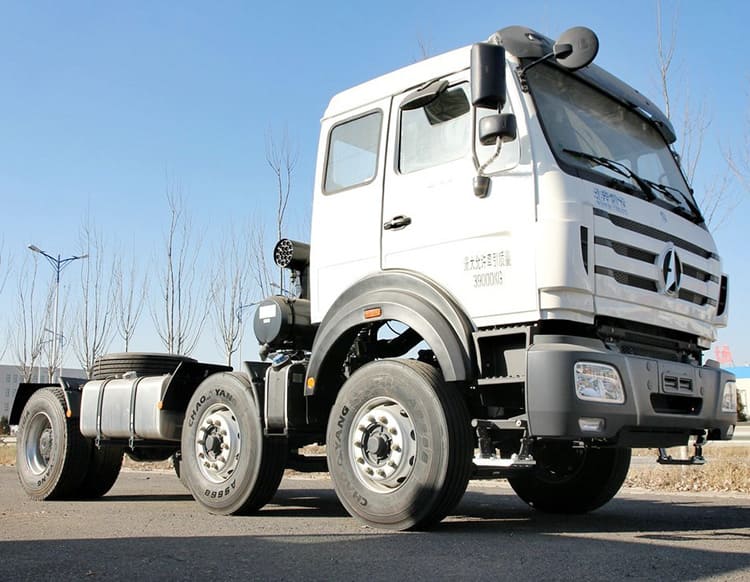

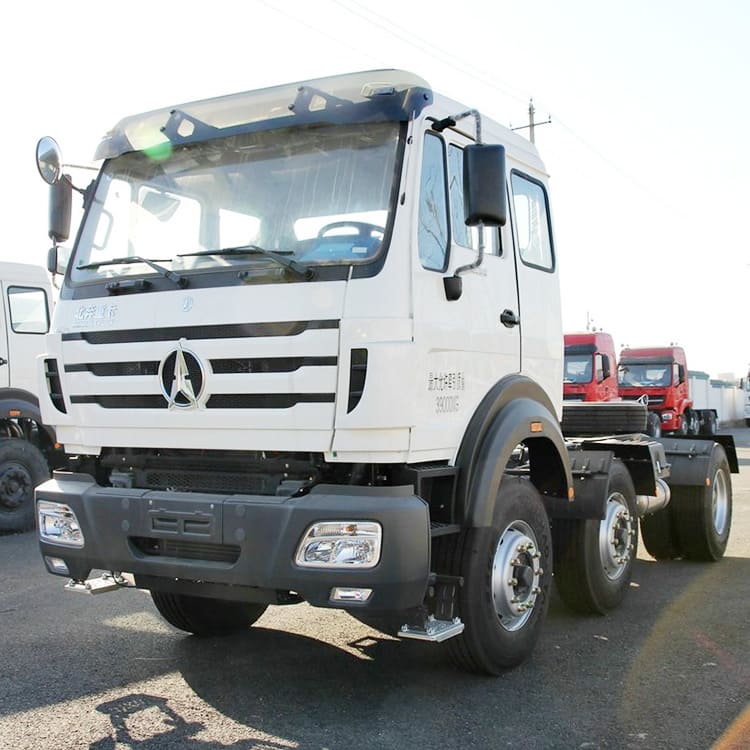

Name: Beiben NG80 6x2 Trailer Truck Head
Drive form: 6X2
Overall Dimension (mm): 6895x2495x3180

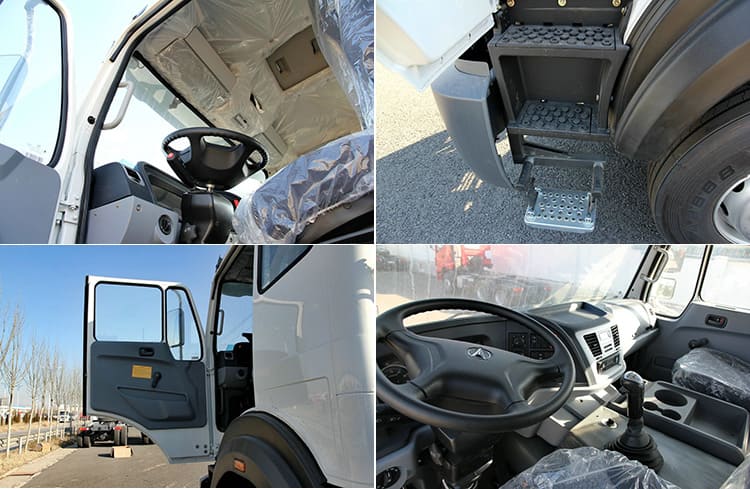

Cab
Cab: High Roof
Number of passengers allowed: 3 people
Wheelbase: 1700+2300mm
Engine: Weichai WP10.336E40
Gearbox: Fast 12JSD160TA
Rear axle ratio: 4.11
Front Track: 1937/1937mm
Rear Track: 1838mm
Vehicle weight: 6.8 tons
Total mass: 24 tons
Total tow mass: 39 tons
Maximum speed: 110km/h
Engine
Engine model: Weichai WP10.336E40
Engine brand: Weichai
Number of cylinders: 6
Fuel Type: Diesel
Cylinder arrangement: in-line
Displacement: 9.726L
Maximum output power: 247kW
Maximum torque: 1500N m
Maximum torque speed: 1300-1600rpm
Rated speed: 1900rpm
Transmission
Gearbox model: Fast 12JSD160TA
Shift mode: manual
Forward gear: 12th gear
Number of reverse gears: 2
Fuel tank
Fuel Tank Material: Aluminum
Fuel tank capacity: 400L
Chassis
Rear axle description: 485 single reduced axle
Rear axle allowable load: 11500kg
Ratio: 4.11
Suspension form: leaf spring
Number of spring pieces: 9/9/9+6
Tire
Number of tires: 8
Tire size: 12R22.5
