The cool appearance and the technological sense of control of the beiben ng80 12 wheel tipper for sale attract the attention of many people, and the durability and driving experience of the beiben ng80 12 wheel tipper for sale are really the key factors to measure a good truck. Beiben ng80 12 wheel tipper for sale has always adhered to the concept of "efficiency first, value first" in the development and manufacture of heavy truck products, and has achieved an unshakable position in the commercial vehicle industry.

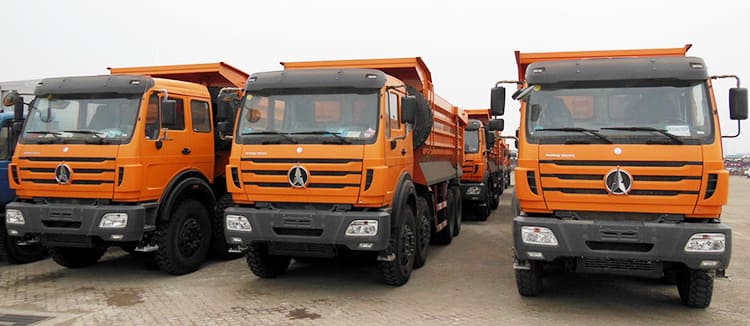

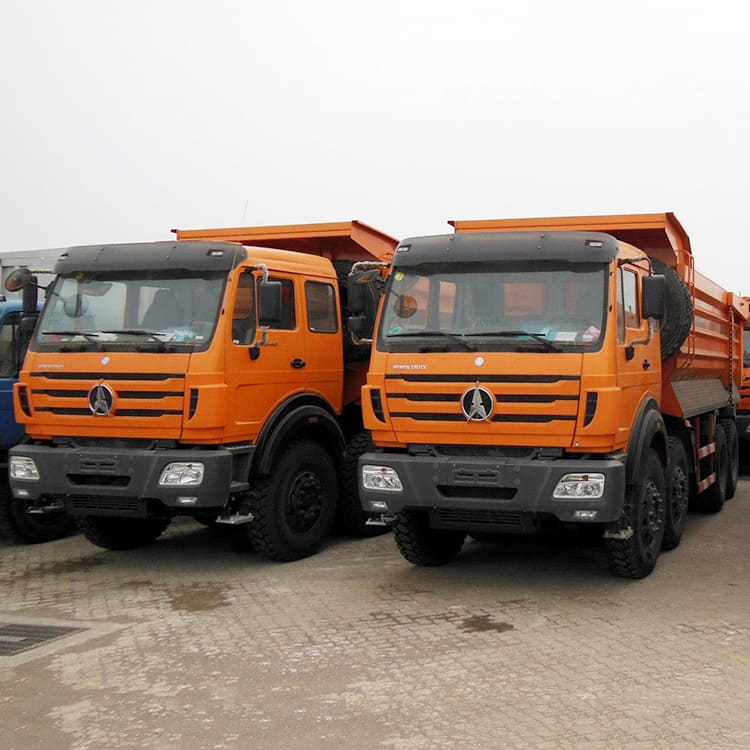

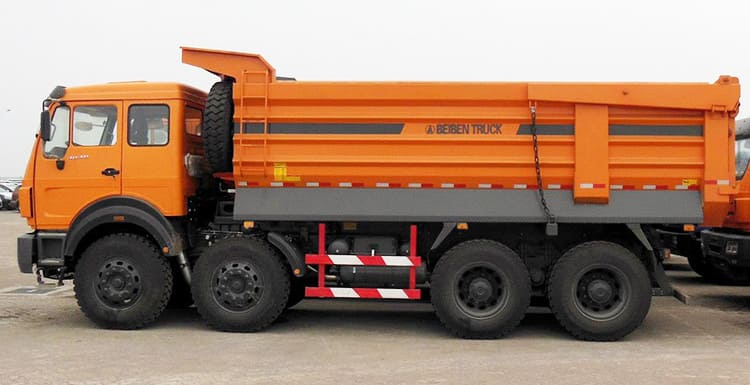

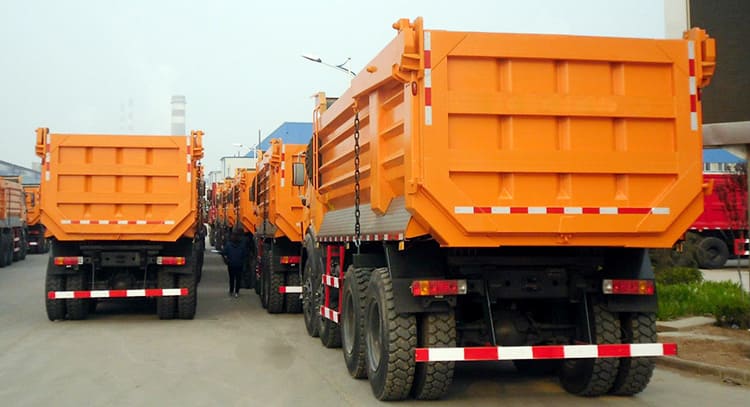

Beiben Truck Engine | Beiben NG80 12 Wheel Tipper for Sale in Kenya
Beiben Truck Engine | Beiben NG80 12 Wheel Tipper for Sale in Kenya
Beiben Truck Engine | Beiben NG80 12 Wheel Tipper for Sale in Kenya
Name: Beiben NG80 12 Wheel Tipper for Sale
Drive form: 8X4
Wheelbase: 1500+4750+1450mm
Overall dimension(mm): 1200x2500x3500
Front Track: 1995/1995mm
Rear track: 1800mm
Vehicle weight: 14 tons
Rated load: 16.8 tons
Total mass: 31 tons
Approach angle: 26 degrees
Departure angle: 19 degrees
Market segments:
Urban construction waste, road transport
Engine
Engine model: Huachai TCD2015V06
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 11.906L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1558N m
Maximum torque speed: 1300rpm
Rated speed: 2100rpm
Engine form: V-type 6-cylinder, water-cooled, supercharged and intercooled
Cargo box
L*W*H(mm): 9420x2300x950
Cargo box form: self-unloading
Transmission
Gearbox model: Beiben 9T-160
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank capacity: 200L
Chassis
Rear axle allowable load: 18000kg
Speed ratio:
Number of leaf springs: 12/12/13
Tire
Tire size: 12.00-20
Number of tires: 12
