The high-quality body steel plate used by beiben ng80 8x4 mining truck price is integrally stamped and formed, and the composite sandwich steel plate is welded together. The beiben ng80 8x4 mining truck price cab with an all-steel frame and double cavities has three safety lines of defense, which effectively improves the safety.
Beiben ng80 8x4 mining truck price has WEVB engine braking system, which improves the braking efficiency of the whole vehicle by 55%. When the Beiben ng80 8x4 mining truck price goes down a long slope, the number and time of service braking is significantly reduced, the working life of the braking system and tires is prolonged, and the safety of the vehicle is greatly improved.
Beiben Truck 2020 | Beiben NG80 8X4 Mining Truck Price for Sale in Ghana
Beiben Truck 2020 | Beiben NG80 8X4 Mining Truck Price for Sale in Ghana
Beiben Truck 2020 | Beiben NG80 8X4 Mining Truck Price for Sale in Ghana
Beiben Truck 2020 | Beiben NG80 8X4 Mining Truck Price for Sale in Ghana

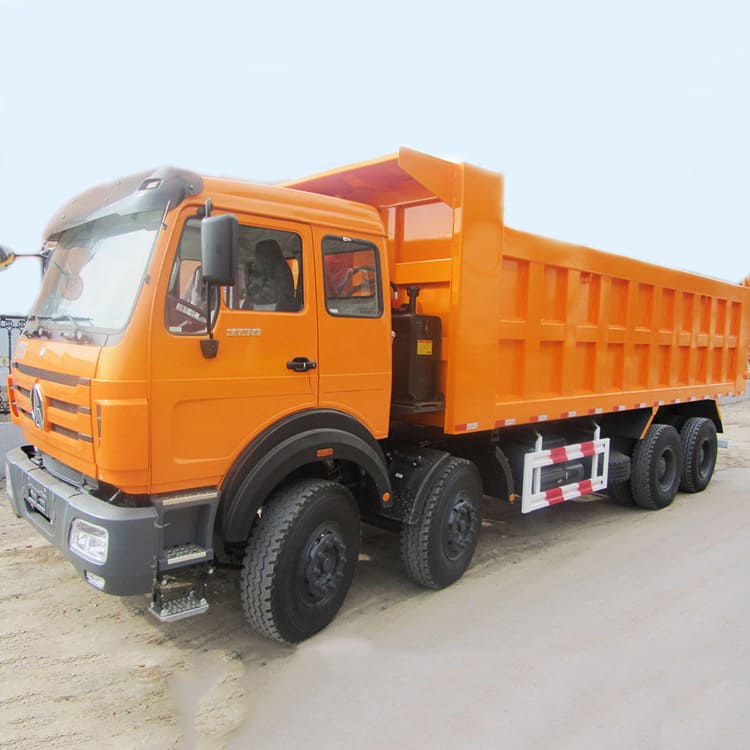

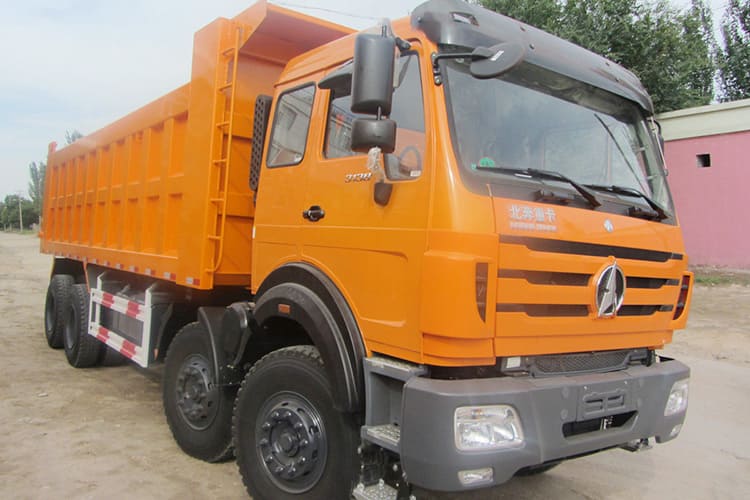

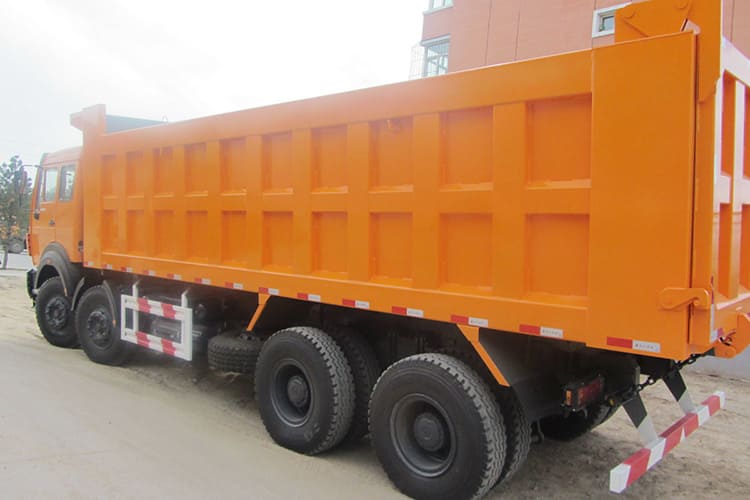

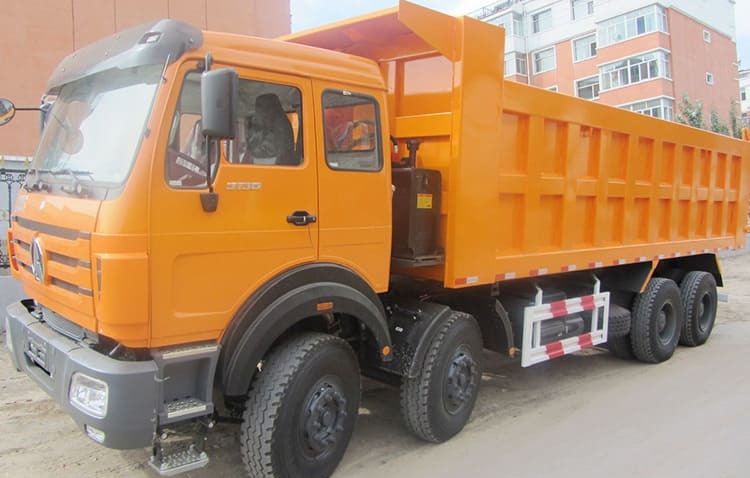

Name: Beiben NG80 8X4 Mining Truck
Drive form: 8X4
Wheelbase: 1500+4750+1450mm
Overall dimension(mm): 1200x2500x3500
Front Track: 1995/1995mm
Rear track: 1800mm
Vehicle weight: 14 tons
Rated load: 16.8 tons
Total mass: 31 tons
Approach angle: 26 degrees
Departure angle: 19 degrees
Market segments:
Urban construction waste, road transport
Engine
Engine model: Huachai TCD2015V06
Number of cylinders: 6
Fuel Type: Diesel
Displacement: 11.906L
Maximum horsepower: 340 horsepower
Maximum output power: 250kW
Maximum torque: 1558N m
Maximum torque speed: 1300rpm
Rated speed: 2100rpm
Engine form: V-type 6-cylinder, water-cooled, supercharged and intercooled
Cargo box
L*W*H(mm): 9420x2300x950
Cargo box form: self-unloading
Transmission
Gearbox model: Beiben 9T-160
Forward gear: 9th gear
Number of reverse gears: 1
Fuel tank
Fuel tank capacity: 200L
Chassis
Rear axle allowable load: 18000kg
Speed ratio:
Number of leaf springs: 12/12/13
Tire
Tire size: 12.00-20
Number of tires: 12
